Mining Screens Used In Mineral Ores Natural Stone Coal Sand Salt Or Waste

Mining screens used in mineral ores, natural stone, coal, sand, salt or waste
Descriptions :

Corrosion, abrasion, heat, vibration and weight are important factors to consider when choosing the metal or alloys to use to manufacture a screenWe specialize in screens woven from high carbon, high tensile spring steel, (unsurpassed for durability and long life with heavy abrasive material) and stainless steel which resists heat and corrosion giving longer life and durability.

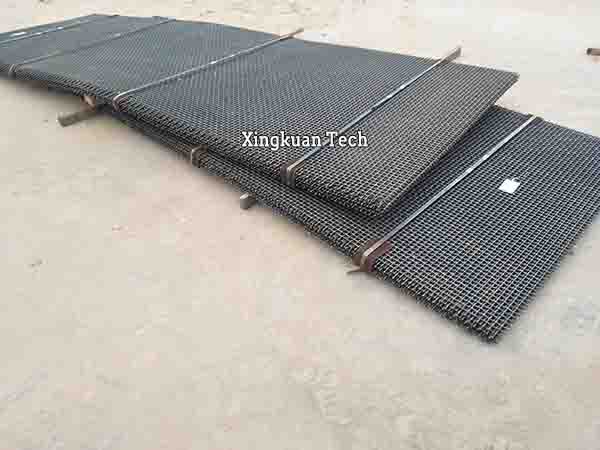

TYPES OF HOOKS:

All the standard hook and turn-ups are available including

Standard overhooks
Single fold metal turn-ups
Double fold metal turn-ups
Double folded, double reinforced metal turn-ups
C-plates

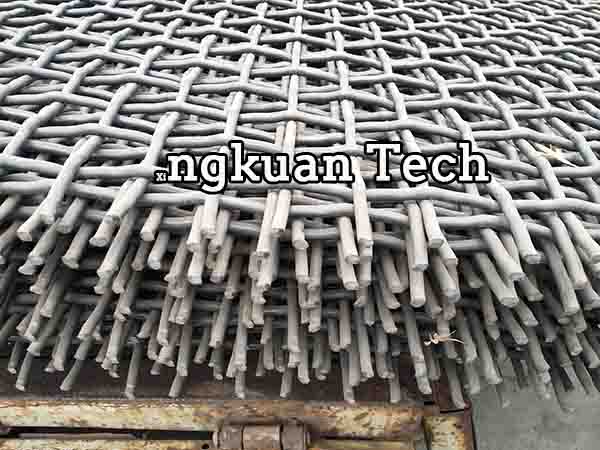

TYPES OF WEAVE

All standard types of weave are available including

Single crimped
Single intermediate crimp
Double intermediate crimp
Lock crimp
Plain weave
Twill weave
Holland weave

APERTURE SIZES

Heavy Wire (larger than 0.7mm diameter)
Aperture sizes vary from 2.4mm to 125mm and larger.
Fine Wire aka Fine Mesh ( smaller than 0.7mm diameter)
As small as 200 mesh (or 40 000 holes per square inch or 0.06mm) up to 2 mesh (4 holes per square inch or 11.08mm)
Available wire sizes range from 0.03mm to 12.5mm.

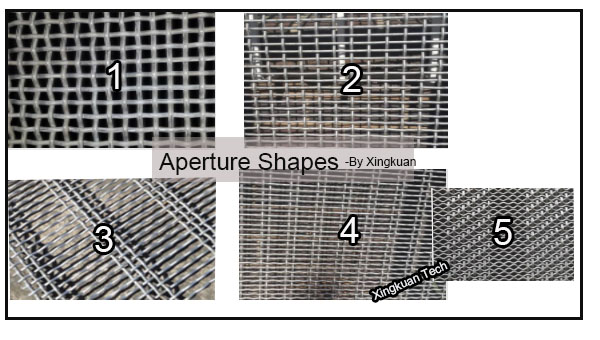

APERTURE SHAPES

Square Apertures:The warp and weft wires form a square aperture. It is available in a variety of weaves and crimps.
Slotted Apertures:A woven wire screen with one single cross wire and where one side of the aperture is different in length from the other, perpendicular dimension.We can manufacture slotted screens with plain, intermediate or flat top crimping.
Triple Shute:A slotted woven wire screen with 3 cross wires. Available in intermediate and flat top crimp
Double Shute Slotted:A slotted woven wire screen with 2 cross wires.
Non Blinding Harp:We manufacture both Serpa Harp and Tria Harp screens.
-Serpa (Square) Harp:Forming a square aperture diagonally to flow. It gives good cut point accuracy without blinding.
-Tria Harp:Additional thicker wires between the normal harp oriented wires creates non blinding effect through differing vibrating frequency and amplitude.

How to select the right screen?

Selecting the right screen for your operations can be quite a challenge as many parameters must be considered in order to find the right screening equipment for an application.

Thickness of wire

Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

Open Area

This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

Aperture or Opening Width

This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm

Material Used
