    Mining Vibrating Screen Mesh With Hooked For Mine And Coal

    Ask Lasest Price
    Brand Name : Xingkuan Tech
    Model Number : Mine & quarry screen mesh
    Certification : Bv ,sgs , ce , Iso
    Price : Negotiate
    Payment Terms : L, L/C, T/T
    Supply Ability : 10000m2/ week
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Mining Vibrating Screen Mesh With Hooked For Mine And Coal

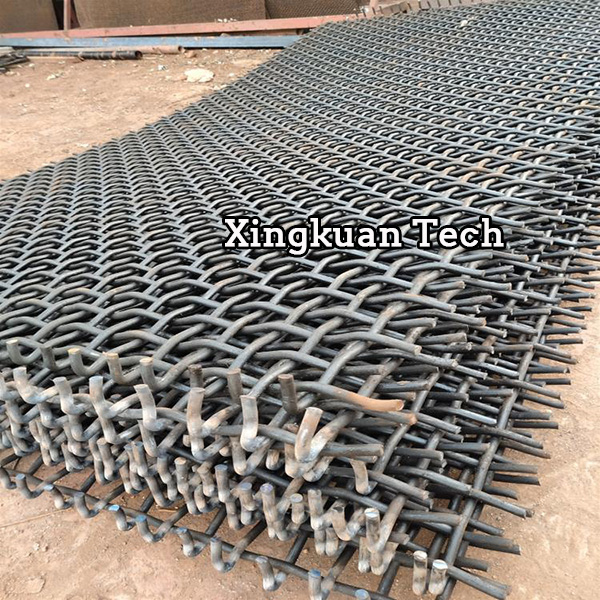

    Mining Vibrating Screen Mesh with Hooked for Mine and Coal

    Mining wire meshscreen is made of high quality carbon steel wire, stainless steel wire, or other materials. It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications. The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth.

    ApretureWire Diaweight
    KG/1.5X2M
    3mm2.0MM30.48
    4mm2.5MM37.7
    6mm3.5MM48.8
    8mm3.5MM40.5
    10mm4.0MM43.5
    12mm4.0MM38.1
    14mm4.0MM33.8
    15mm4.0MM32
    16mm4.5MM37.6
    19mm5.0MM39.6
    20mm6.0MM52.7
    22mm6.0MM48.9
    24mm6.0MM45.7
    25mm6.0MM44.2
    28mm6.5MM40.3
    38mm8.0MM53
    50mm9.0MM52.3
    100mm12.5MM52.9

    No.GradeChemical CompositionWire diameter
    CSiMnmm
    1450.42-0.500.17-0.370.50-0.802.0-6.0
    2500.47-0.550.17-0.370.50-0.80
    3550.52-0.600.17-0.370.50-0.80
    4600.57-0.650.17-0.370.50-0.80
    5650.62-0.700.17-0.370.50-0.80
    6700.67-0.750.17-0.370.50-0.80
    765Mn0.62-0.700.17-0.370.90-1.202.0-14.0

    Quality Mining Vibrating Screen Mesh With Hooked For Mine And Coal for sale
