Heavy Duty 65mn Spring Wire Crimped Screen Mesh for Crusher

Descriptions :

Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.

1. Angle: 30 degrees, 45 degrees
2. Crimped wire mesh Shape: v-shaped, u-shaped
3. Hook crimped woven wire mesh Hook type: positive check, positive check
4. Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire.

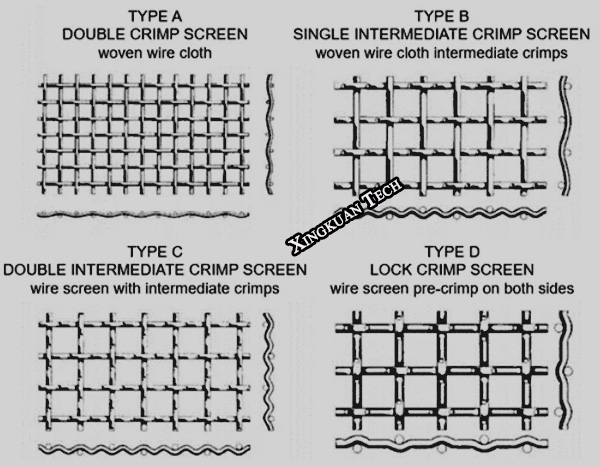

5. Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped
6. Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.
7. Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.

When ordering screens the following technical aspects should be taken into account :

Thickness of wire

Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

Open Area

This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

Aperture or Opening Width

This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm

Hebei Xingkuan Tech co.,Ltd (XKT) established in 2005 is a division of Highui import & export co.,ltd , are Specialists in Manufacturing ,Exporting & supply of high-tech industrial wire mesh & other related products ( widely used in Plastic ,rubber ,oil & gas ,mining ,petrochemical , breeding , security areas ,etc ) .All of our wire mesh products quality exceed ASTM or EN standard and sell well not only in China but also to such countries and regions as Italy ,USA, UK, Germany, Australia,Africa, Philippines, Thailand, Brazil, Chile, Sweden, Norway, Saudi Arabia ,Zimbabwe ,mozambique ,kenya and United Arab Emirates etc.

Vision :

> Never stop for the pursuit of quality , Price & Delivery .

> Pursuit to be the BEST ,not have to be the largest .

> You feel us best ,then we are real “BEST”

>  Customer win , then we win .

Exquisite products :

1. Woven Mesh cloth

2. wire mesh belt

3. Mine & quarry Mesh

4. Fence processed Products

5. Punching mesh

6. Decortaive mesh
