65MN Heavy duty Crimped Wire Mesh, 1500mmx2000mmScreen Mesh for The
Mining
Crimped wire mesh also called square wire mesh is cloth made from
wire strands. The wires that make up wire mesh run parallel to the
width of the roll (cross wires) and parallel to the length (line
wires). The cross and line wires are interwoven. That is, the wires
cross over and under each other. Wire Mesh can be woven in a number
of different styles depending on the material type, wire diameter,
and opening size. Crimped wire mesh is available in rolls, sheets
or panels, and cut-to-size.Screen mesh is widely used in industry,
agruculture, crusher, building, house fencing and so on.
1. Material:
High carbon steel wire, low carbon steel wire, galvanized wire,
stainless steel wire and other metal wires.
2. Feature:
It has fine features of neat & precise, sturdy structure, durable&
strongly rust-resistant and fine anti-corrosiveness.

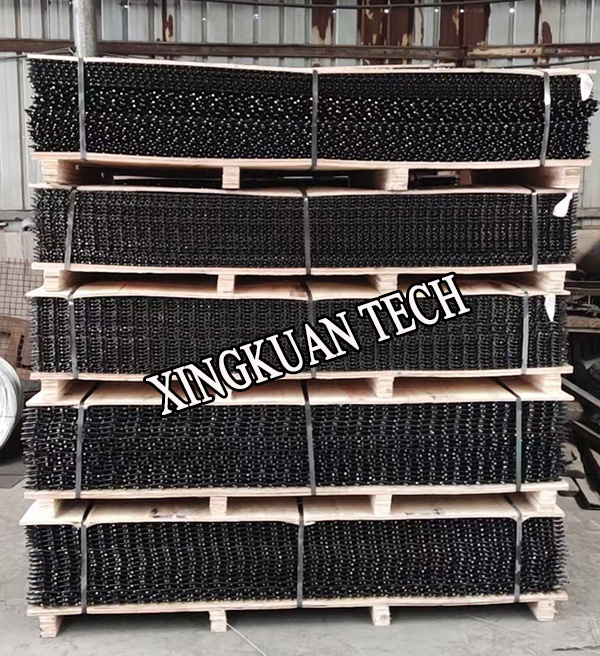

3.Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth
4.Application:
Screening in mine, coal factory, construction and other
industries.used as window
screening, safety guards in machinery enclosures, also used in
filtering liquid and gas, sieving grain.
| Item | wire diameter
mm | open size
mm | width
m | length
m | weight
kg |
| 1 | 2 | 3 | 1.5 | 2 | 32 |
| 2 | 3 | 5 | 1.5 | 2 | 42.6 |
| 3 | 4 | 8 | 1.5 | 2 | 51.13 |
| 4 | 4.5 | 12 | 1.5 | 2 | 46.77 |
| 5 | 5 | 16 | 1.5 | 2 | 45.52 |
| 6 | 5.5 | 18 | 1.5 | 2 | 49.37 |
| 7 | 6 | 20 | 1.5 | 2 | 52.7 |
| 8 | 6 | 22 | 1.5 | 2 | 48.96 |
| 9 | 6.5 | 24 | 1.5 | 2 | 52.87 |
| 10 | 6.5 | 27 | 1.5 | 2 | 48.12 |
| 11 | 7 | 30 | 1.5 | 2 | 50.63 |
| 12 | 8 | 50 | 1.5 | 2 | 42.29 |
| 13 | 12 | 75 | 1.5 | 2 | 64 |
| No. | Grade | Chemical Composition | Wire diameter |
| | C | Si | Mn | mm |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.0-6.0 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 |
| 4 | 60 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.0-14.0 |
When ordering screens the following technical aspects should be
taken into account :
Thickness of wire
Thick wire will last longer than thin wire, but will give a smaller
open area and will therefore pass less material per unit area.
Open Area
This is the most important factor in obtaining maximum output. The
larger the open area the less screen is wasted and the faster the
speed of screening. This open area factor must balanced against the
wire diameter to give adequate life
Aperture or Opening Width
This is the actual opening between the wires , and is also referred
to as space. Thus 10mm aperture , 4mm wire ,means the wires are
10mm apart , and the diameter of wire is 4mm
