High Manganese Mining Wire Mesh Vibrating Screen Mesh For Stone Crusher

High manganese mining wire mesh vibrating screen mesh for stone crusher

Descriptions :

Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Specifications :

Name	Vibrating Screen Mesh
High carbon steel	65Mn,45#,50#,55#,60#,70#,,72A
Wire diameter	0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening	2mm to 100mm,tolerance +-3%

NO	Grade	Chemical Composition
NO	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Features:

No tearing and abrasion
Placed above rubber beads to avoid metal to metal contact
Corrosion resistance
High temperature resistance

Weaving Patterns:

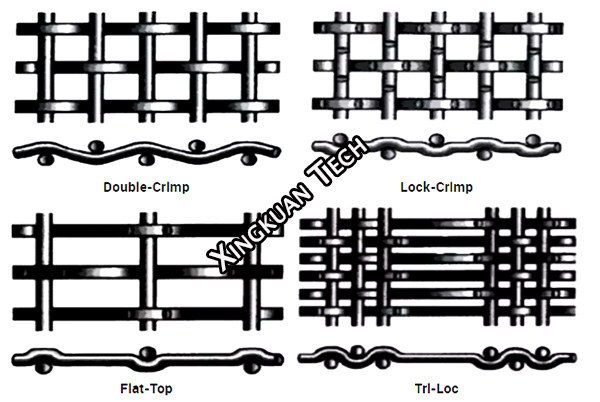

Being pressed and then weaved.weave and crimping methods include plain/tabby weave,twilled weave,bidirectional intermediate crimp,tightened lock crimp,flat top crimp,bidirectional crimp,unilateral crimp,double crimped, single crimped,etc.It's sturdy in structure.

Applications :

Mining industry.
Quarry.
Aggregate processing industry.
Chemical industry.
Sand and gravel industry.

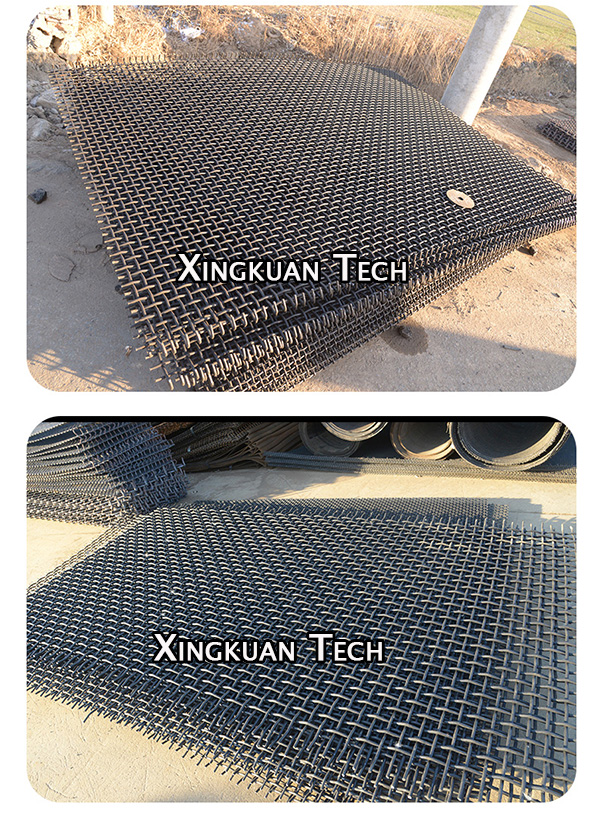

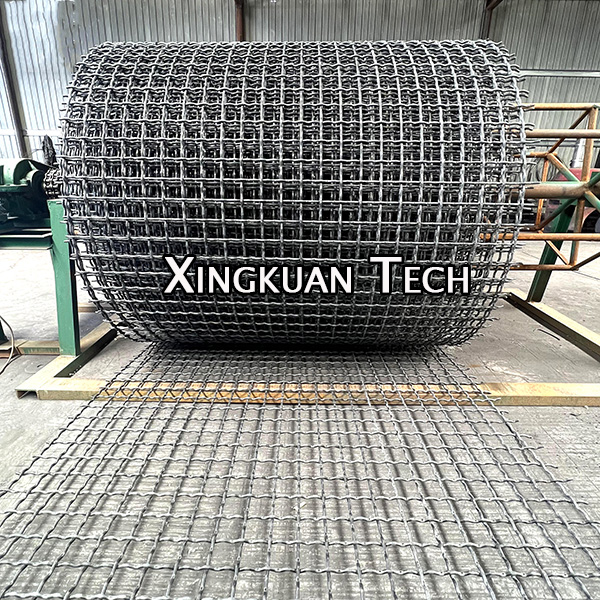

Products Show :
