304 8 Mesh 10 Mesh 0.4mm Wire Stainless Steel Screen Industrial Screen

Ask Lasest Price
Brand Name :	Xingkuan Tech
Model Number :	304 8 mesh ,10 mesh 0.4mm wire stainless steel screen, industrial screen
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	10000m2/day
Delivery Time :	1-7 workingdays

Add to Cart

Product Details
Company Profile

304 8 Mesh 10 Mesh 0.4mm Wire Stainless Steel Screen Industrial Screen

304 8 mesh ,10 mesh 0.4mm wire stainless steel screen, industrial screen

Quick details & specifications :

Material : AISI304 -8% nickle
Edge :Closed or open edge
Weaving pattern : Plain weaving
Mesh:8 mesh ,10 mesh

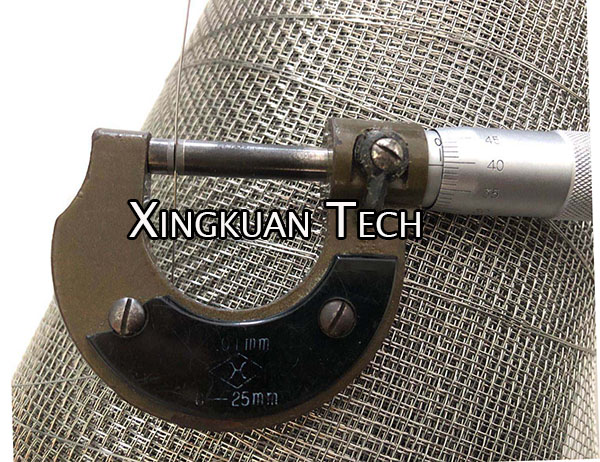

Wire diameter :0.4mm
Roll Width : standard from 0.6-6m

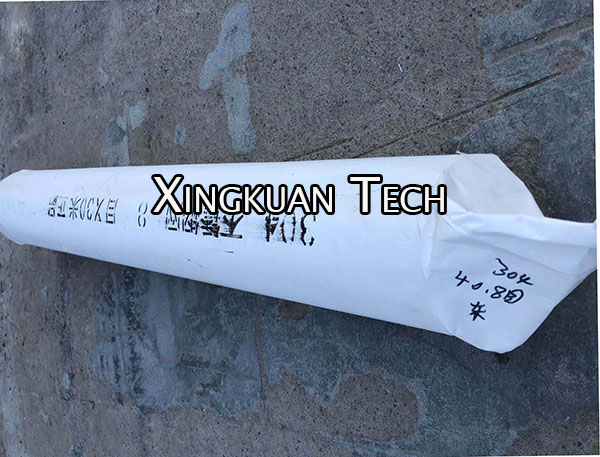

Roll length :standard 30m /100ft
Wire mesh size is not only assigned a mesh number, but also denominated in microns. Mesh size means the number of openings per inch. But micron tells us the nominal opening size, and they can convert to each other.

Mesh	SWG	DIAMETERS OF WIRE		SIZE OF OPENING			Approx Percentage Open Area
Mesh	SWG	Inch	MM	Inch	MM	Micron	Approx Percentage Open Area
4	12	0.104	2.64	0.146	3.71	3,710	34.14
4	13	0.092	2.34	0.158	4.01	4,010	39.98
4	14	0.08	2.03	0.17	4.32	4.32	46.28
4	15	0.072	1.83	0.178	4.52	4,520	50.67
4	16	0.064	1.63	0.186	4.72	4,720	55.25
4	17	0.056	1.43	0.194	4.92	4,920	60.03
4	18	0.048	1.22	0.202	5.13	5,130	65.27
5	14	0.08	2.03	0.12	3.05	3,050	36.05
5	15	0.072	1.83	0.128	3.25	3,250	40.93
5	16	0.064	1.63	0.136	3.45	3,450	46.12
5	17	0.056	1.43	0.144	3.65	3650	51.62
5	18	0.048	1.22	0.152	3.86	3,860	57.74
5	19	0.04	1.02	0.16	4.06	4,060	63.87
5	20	0.036	0.91	0.164	4.17	4,170	67.38
6	16	0.064	1.63	0.102	2.603	2,603	37.82
6	17	0.056	1.43	0.11	2.803	2,803	43.85
6	19	0.04	1.02	0.127	3.213	3,213	57.62
6	20	0.036	0.91	0.131	3.323	3,323	61.63
6	21	0.032	0.81	0.135	3.423	3,423	65.39
8	16	0.064	1.63	0.061	1.545	1545	23.68
8	17	0.056	1.43	0.061	1.745	1,745	30.21
8	18	0.048	1.22	0.077	1.955	1,955	37.91
8	19	0.04	1.02	0.085	2.155	2,155	46.07
8	20	0.036	0.91	0.089	2.265	2,265	50.89
8	21	0.032	0.81	0.093	2.365	2,365	55.48
8	22	0.028	0.71	0.097	2.465	2,465	60.28
8	23	0.024	0.61	0.0101	2.565	2,565	65.27
8	24	0.022	0.55	0.103	2.625	2,625	68.36
8	25	0.02	0.5	0.105	2.675	2,675	70.98
10	20	0.036	0.91	0.064	1.63	1,630	41.18
10	21	0.032	0.81	0.068	1.73	1,730	46.39
10	22	0.028	0.71	0.072	1.83	1,830	51.91
10	23	0.024	0.61	0.076	1.93	1,930	57.74
10	24	0.022	0.55	0.078	1.99	1,990	61.38
10	25	0.02	0.5	0.08	2.04	2,040	64.5
12	22	0.028	0.71	0.055	1.407	1,407	44.16
12	23	0.024	0.61	0.059	1.507	1,507	50.67
12	24	0.022	0.55	0.062	1.567	1,567	54.78
12	25	0.02	0.5	0.064	1.617	1,617	58.34
12	26	0.018	0.45	0.066	1.667	1,667	62
14	24	0.022	0.55	0.05	1.264	1,264	48.56
14	25	0.02	0.5	0.052	1.314	1,314	52.48
14	26	0.018	0.45	0.054	1.364	1,364	56.55
14	27	0.016	0.4	0.056	1.414	1,414	60.77
14	28	0.015	0.37	0.057	1.444	1,444	63.37
16	24	0.022	0.55	0.041	1.038	1,038	42.71
16	25	0.02	0.5	0.043	1.088	1,088	46.93
16	26	0.018	0.45	0.045	1.138	1,138	51.34
16	27	0.016	0.4	0.047	1.188	1,188	55.96
16	29	0.013	0.34	0.049	1.248	1,248	61.75
16	30	0.012	0.31	0.05	1.278	1,278	64.76
18	25	0.02	0.5	0.036	0.911	911	41.69
18	26	0.018	0.45	0.038	0.961	961	46.39
18	27	0.016	0.4	0.04	1.011	1,011	51.34
18	28	0.015	0.37	0.041	1.041	1,041	54.43
20	24	0.022	0.55	0.028	0.72	720	32.14
20	25	0.02	0.5	0.03	0.77	770	36.76
20	26	0.018	0.45	0.032	0.82	820	41.69
20	27	0.016	0.4	0.034	0.87	870	46.93
20	28	0.015	0.37	0.035	0.9	900	50.22
20	29	0.013	0.34	0.037	0.93	930	53.62
20	30	0.012	0.31	0.038	0.96	960	57.14
24	27	0.016	0.4	0.026	0.658	658	38.69
24	28	0.015	0.37	0.027	0.688	688	42.3
24	29	0.013	0.34	0.028	0.718	718	46.07
24	30	0.012	0.31	0.029	0.748	748	50
24	32	0.011	0.27	0.031	0.788	788	55.48
30	28	0.015	0.37	0.019	0.477	477	31.7
30	29	0.013	0.34	0.02	0.507	507	35.81
30	30	0.012	0.31	0.021	0.537	537	40.18
30	31	0.011	0.29	0.022	0.557	557	43.23
30	32	0.011	0.27	0.023	0.557	577	46.39
40	32	0.011	0.27	0.014	0.365	365	33.04
40	33	0.01	0.25	0.015	0.385	385	36.76
40	34	0.009	0.234	0.016	0.401	401	39.88
40	35	0.008	0.21	0.017	0.425	425	44.8
40	36	0.008	0.193	0.017	0.442	442	48.45
50	34	0.009	0.234	0.011	0.274	274	29.09
50	35	0.008	0.21	0.012	0.298	298	34.41
50	36	0.008	0.193	0.012	0.315	315	38.45
50	37	0.007	0.172	0.013	0.336	336	43.75
50	38	0.006	0.152	0.014	0.356	356	49.11
60	37	0.007	0.172	0.01	0.251	251	32.25
60	38	0.006	0.152	0.011	0.271	271	41.08
80	40	0.005	0.122	0.008	0.196	196	37.91
80	41	0.004	0.112	0.008	0.206	206	41.89
80	42	0.004	0.102	0.008	0.216	216	46.07
100	42	0.004	0.102	0.006	0.152	152	35.81
100	43	0.004	0.091	0.006	0.163	163	41.18
100	44	0.003	0.081	0.007	0.173	173	46.39
120	44	0.003	0.081	0.005	0.131	131	38.11
150	45.5	0.002	0.063	0.004	0.106	106	39.43
200	47	0.002	0.05	0.003	0.077	77	36.76
250	48	0.002	0.04	0.002	0.062	62	36.76
300	48.5	0.002	0.035	0.002	0.045	45	27.83
325	48.5	0.001	0.03	0.002	0.043	43	30.49
500	50	0.001	0.025	0.001	0.026	26	25.79

Applications:

Window screen ,safety screen
Filter media ,Filter screen mesh
Decorative
Industrial screen

Notice :

Own a large stock for standard size , save time and cost for you .
Free sample in standard size is available
Any customerized special request is always avilable .
Drawings or item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

1.Material

2. Mesh & wire diameter

3. roll length and width

4. any special request : packing , delivery time , etc .
