Filter band filter mesh roll belt for plastic extrusion in screen
changer
Quick Detail :
Famouse screen changer belt mesh
--- the market need a lot of , we have always stock .
---in Plastic using , can be round ,square shape , can be used in
recycling after fire.
A LARGE OF STOCK FOR 10M/ROLL ,
IF YOU NEED 20M PER ROLL WE ALSO CAN DO

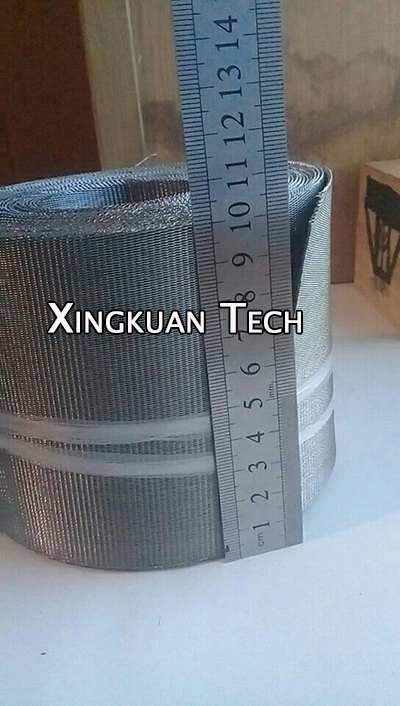

width : 97mm,127mm,110mm,130mm,133mm,150mm....etc
A LARGE OF STOCK FOR 10M/ROLL ,IF YOU NEED 20M PER ROLL WE ALSO CAN
DO
Application of Filter band filter mesh roll belt for plastic
extrusion
** widely used in continuous screen changers. (automatic screen
changers).
**Filter candles, vacuum filters and spring filters(as filter media
in filtration process )
**Major in Plastic Extrusion,Melt Filtration and other plastic
industry Filed for PP,PS,PVC,ABS,PE,PET etc.
Specification of Filter band filter mesh roll belt for plastic
extrusion
** Material : stainless steel 302,304,304A,316,316L
* *Size of width : 100mm to 1200mm. (such as
97mm,100mm,110mm,120mm.127mm,130mm,150mm)
** Size of Length : 10m/roll,20m/roll ( special ,available )
**Mesh Size : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16
mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25
mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh
etc.
** weaving Type : Reverse Dutch woven - reverse twill dutch &
reverse plain dutch ,thicker warp wires and less weft wires
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| HB-Code | Mesh | Micron Retention | Micron Retention | Equation Factors for | Tensile Strength | Porosity theor. | Weight | Cloth Thickness |
| | nominal | absolute | Permeability Performance | Warp | Weft | | | |
| | μm | μm | Y | M | N | N | % | kg/m2 | mm |
| RPD 15 | 720x150 | 15 | 16- 20 | 35.63 | 0.01726 | 240 | 400 | 45 | 0.65 | 0.15 |
| RPD 17 | 630x130 | 17 | 20- 24 | 30.95 | 0.02967 | 210 | 480 | 51 | 0.85 | 0.22 |
| RPD 25 | 600x100 | 25 | 34- 38 | 10.14 | 0.01751 | 205 | 425 | 56 | 0.80 | 0.23 |
| RPD 40 | 290x 75 | 40 | 53- 58 | 12.94 | 0.03460 | 540 | 700 | 51 | 1.55 | 0.40 |
| RPD 60 | 175x 50 | 60 | 67- 75 | 8.29 | 0.03479 | 570 | 1200 | 47 | 2.40 | 0.57 |
| TRD 75 | 400x120 | 75 | 75- 80 | 4.00 | 0.00520 | 360 | 230 | 62 | 0.73 | 0.24 |
| RPD 80 | 130x 35 | 80 | 95-105 | 8.25 | 0.01614 | 860 | 1250 | 49 | 3.10 | 0.77 |
| RPD 85 | 175x 37 | 85 | 100-106 | 3.81 | 0.00255 | 780 | 720 | 54 | 2.10 | 0.57 |
| RPD 90 | 170x 40 | 90 | 106-118 | 4.03 | 0.01569 | 890 | 770 | 54 | 2.10 | 0.57 |
| TRD 125 | 260x 40 | 125 | 112-125 | 1.12 | 0.16700 | 2220 | 580 | 54 | 2.25 | 0.62 |
| RPD 400 | 84x 14 | | 450-530 | 0.33 | 0.01028 | 1630 | 1160 | 62 | 3.50 | 1.15 |
| TRD 400 | 132x 17 | | 400-450 | 1.00 | 0.01686 | 4500 | 760 | 57 | 4.65 | 1.35 |
| RPD 500 | 80x 14 | | 560-630 | 0.10 | 0.01123 | 1550 | 1160 | 64 | 3.40 | 1.18 |
| TRD 500 | 72x 15 | | 500-600 | 0.02 | 0.01567 | 5330 | 810 | 57 | 6.35 | 1.85 |
Feature
**Non stop -continous
**anti -corrosion
** Fine filtration -special woven type
Packing
-- waterproof paper + Label mark
--film+waterpoof paper + Label mark
--carton box ,or wooden case + shipping mark
