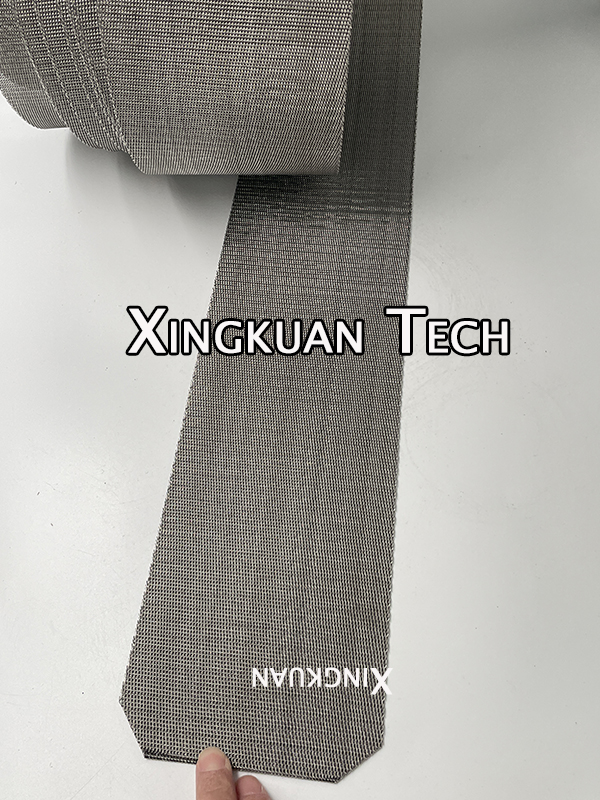

72/15 152/ 24 260/40 reverse dutch stainless filter belt mesh band
for plastic
Quick Detail :
The filter belts are usually produced in reverse dutch weaving
type, so it can load greater strength in filtration. It is woven
from high tensile stainless steel wire, and widely used in
separating foreign particles out of molten plastic in plastic
industries. we can produce a wide range of extruder screen belt for
continuous screen changers, extruder screen packs and extruder
screen discs.
Material: stainless steel 302, 304, 316, 316L etc.
Wove type:reverse dutch weave pattern.
Size: 48 × 10 mesh, 72 × 15 mesh, 132 × 14 mesh, 132 × 17 mesh, 152 × 24
mesh, 152 × 30 mesh, 260 × 40 mesh, 250 × 40 mesh, 400 × 120 mesh.
Width: 80mm to 1200 mm.
Length: 10 m to 30 m.
Other size available.
| Automatic Filter Belt For Plastic Extruder |
| Mesh Counts | Wire dia. (mm) | Belt Width (mm) | Belt Length (m) |
| 72/15 | 0.45/0.55 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 120/15 | 0.35/0.45 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 132/17 | 0.32/0.45 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 150/17 | 0.3/0.45 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 152/24 | 0.27/0.4 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 170/17 | 0.27/0.45 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 180/18 | 0.27/0.45 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 200/40 | 0.17/0.27 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
| 260/40 | 0.15/0.25 | 97, 100, 110, 120, 127, 130, 150 | 10/20 |
Features :
1. the automatic instant mesh belt filters replace filter without
any manual operation.
2. the material flow never fluctuates.
4 .blet pump make high quality, good stability.
5 .no waste and less consumption of raw materials.
6. consists of 10 meters or 20 meters filter belt, belt box and
electric control system.
7. non-stop working production and absence of material fluctuation
while exchanging screen
Aplications :
Filter belt is mainly used for belt style continuous screen
changers in fine filtration and extrusion process, for example in
plastic, rubber, petroleum, chemical, food and pharmacy industry.
PP/ABS/PS/plastic extruder screen filter ribbon: Can be customized.
Notice : Stock , Any MOQ is ok . Sample is ok ! Delivery time : 1-2
days !
