260X40 Mesh Reverse Twill Dutch KPZ Mesh RTD Wire Cloth Stainless Steel 304

Ask Lasest Price
Brand Name :	Xingkuan Tech
Model Number :	Continuous Filter Belt
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	5000SQM/Week , a large of stock ready whole year .
Delivery Time :	1-7 workingdays
MOQ :	1 roll

Add to Cart

Product Details
Company Profile

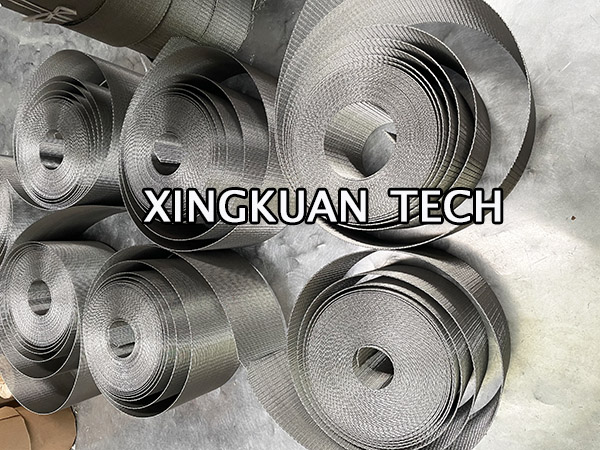

260X40 Mesh Reverse Twill Dutch KPZ Mesh RTD Wire Cloth Stainless Steel 304

260X40 Mesh Reverse Twill Dutch (KPZ-Mesh, RTD) Wire Cloth,stainless steel 304

Quick Detail :

Mesh belt :
132x17mesh: 0.3x0.45mm,4.4kg/sqm.
152x24mesh: 0.3x0.4mm. 3.5kg/sqm.
260x40mesh: 0.15x0.27mm.2.1kg/sqm.
72x15mesh: 0.45x0.55mm. 5kg/sqm.
Width: 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm,157mm,etc
Length: 10m , 20m / roll.

Features :With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.

Applications:

We have the complete range of Wire Cloth Filter Belts (Screen Ribbons) for continuous screen changers, utilized for screening foreign particles out of molten plastic. They are available in roll lengths of 60 or 120 feet, and widths to suit any size of the extruder, all with brushed (or feathered) edges.

Specifications:

Below is only Part of standard specification , we can make as per request also

Mesh	Wire Dai.(mm)	Thickness(mm)	Width(cm)
45x15	0.45x0.6	1.75	9.7-28
48X10	0.50X0.50	3.6kg/sq.m	9.7-28
72x15	0.45x0.55	1.7	9.7-28
90X17	0.23X0.55	2.48kg/sq.m	9.7-28
110X17	0.23X0.55	2.6kg/sq.m	9.7-28
110X21	0.23X0.35	2.0kg/sq.m	9.7-28
120x16	0.35x0.45	1.36	9.7-28
132x17	0. 3x0.45	1.3	9.7-28
152x24	0.3x0.40	1.2	9.7-28
160x18	0.28x0.45	1.27	8-85
200x40	0.15x0.27	0.7	8-130
260x40	0.15 x0.27	0.65	8-130
300x40	0.15 x0.27	0.65	8-130
360x40	0.13 x0.27	0.6	8-130
Special specification we can produce according to customers' requirements.

Notice :

Vast stock in all size can assure we arrange the quick shipment to our clients to meet urgent market demand .
Other material or size ,we can weave the mesh as per request !
MOQ :1 Roll
Sample : Free at small size .
Payment term: TT,LC ,or any insurance order way through other platform .
