90°/180° angles Curved ladder conveyor belt,flat flex belt used on conveyor

Descriptions :

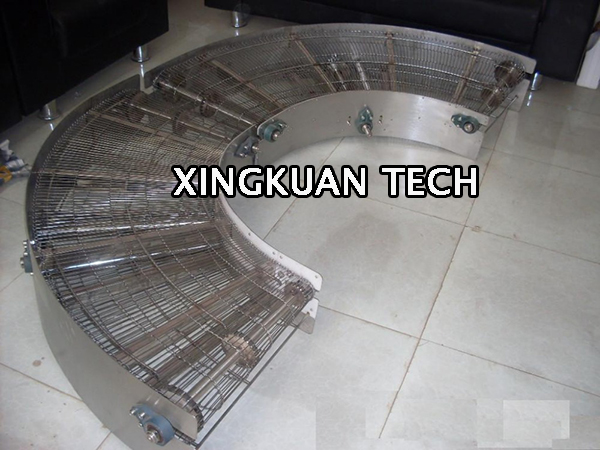

This conveyor belt has the ability to convey products around corners while maintaining their alignment and spacing. It also offers the smallest inside turning radius available today in this style of belting. The width and turning radius of the belt can be configured to fit your application

We are also able to provide you with belts specifically designed for your complex product handling processes. For instance moving product up or down steep slopes and maintaining separation are processes which require custom-designed belts manufactured to your exact specifications. Please contact us to learn more about Aligned Flat-Flex and Compound Grid belts.

It mainly include 2 type , one is straight , another is curved or truned or radial - to suit 90° and 180° turn conveyors.

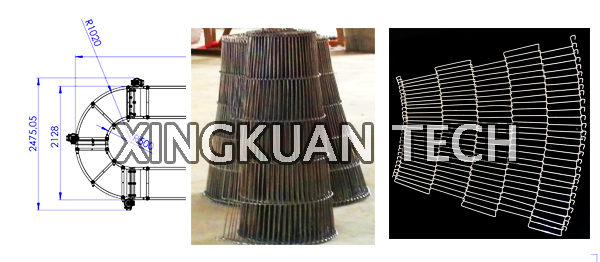

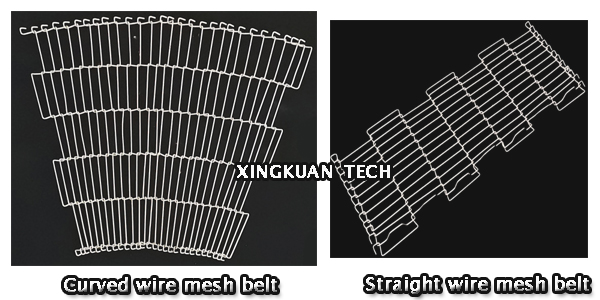

Ladder conveyor belts are available in straight types and curved types with a fixed inside radius as shown in the picture:

Quick Detail :

• Ladder conveyor belt: standard/Straight, curved
• Speed: from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt).
• Temperature range: -100 °C to 300 °C.
• Wire Dia:0.9mm-4.0mm
• Rod pitch:4.0mm-19.05mm
• Space pitch:12.7mm-25mm
• Selvage options: Single edge, double edge,Cedge
• Driven ways: positive driven
• Material: Steel, Gi steel, SS304, SS316

Typical Applications :

• Food industry: often used in light weight products processing - frying, freezing, heating, cooling, cooking, drying, baking, coating, enrobing and sterilization for desserts, pizza, vegetables, bread, flour cakes, meat, fish, candy, potatoes, biscuits, chocolate, nuts, fruit, etc. Like chocolate enrobing, battering and breading, freezing for seafood processing, frying chickens, cooling wafer after coating, pizza baking.
• Electronics industry: printed circuit board required minimum contact support, melting, sold or drying welding.
• Caps making industry: drying for drop plastic
• Others, like textiles, glass heat treatment, printing and dyeing, radio, scientific research applications.]

Notice :

1. Drive: Flat Flex Belt drive by stainless steel or nylon sprocket
2. Please send to us about your request with specificaions description or drawings
3. Payment term: TT,LC ,or any insurance order way through other platform
4. Delivery time : it is very fast if it is standard size .
