Interchange Moog servo valve button folding filter oil screen

Quick details & specifications :

• Material : High quality stainless steel mesh
• Edge /frame material : brass crush ring

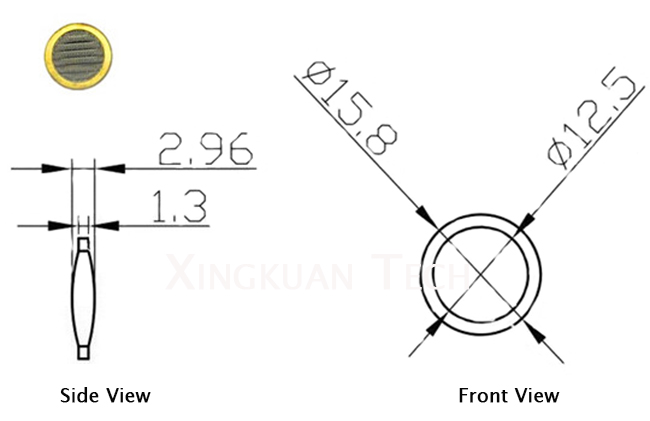

• Diameter: outer 15.88 mm,filtering part 12.5 mm
• Mesh count: 80 mesh,500 mesh,800 mesh
• Filtering accuracy: 200μm 80 mesh,100μm 500 mesh and 65μm 800 mesh

Except the brass edge , we also can do stainless steel or aluminum edge on request with many diameter choices .

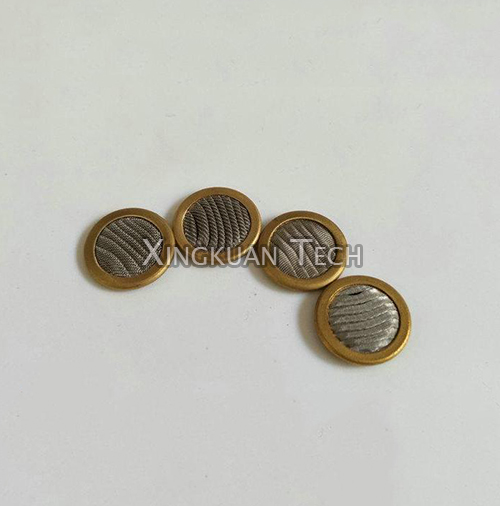

Brass Edge Stainless steel Edge

Descriptions :

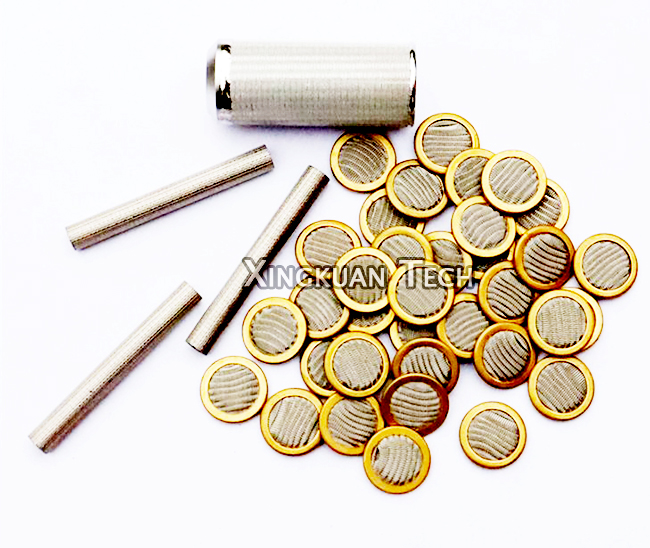

The micro-valve filter element generally refers to a filter element which is welded by vacuum electron beam, and can also be a filter element having a diameter of less than 20 mm, a min diameter of 5 mm and a length of less than 100 mm. It is commonly used in hydraulic and pneumatic control systems for various precision servo valve hydraulic oil or gas filtration, with high precision, good strength and rigidity, low resistance, large flow, high cleanliness, easy to use, stable filter holes, long service life It can replace the bronze powder sintered filter (first generation valve filter) and the skeleton-coated metal mesh filter and the imported wire wound filter to make the servo system more stable and reliable. It has been widely used in aerospace, hydraulic machinery, precision machine tools. , automatic control and other fields.

Applications:

• Mainly used for for Self valve Valve
• also can be used for other filterations
• can be customerized for any applications

Notice :

1. Own a large different size of dies /Mold , save cost for you .
2. Free sample in standard size is available
3. Any customerized shape or special request is always avilable .
4. Drawings or item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

• Material
• Out Diameter
• mesh counting for each layers
