Extruder Screens, Circular Mesh Screen, Wire Mesh Circle for
plastic and rubber
Descriptions :
Extruder screens provide a clean and clear extrusion for the melt
filtration and plastic extrusion processing machinery. This pack
screen filter is designed to keep away mixing of foreign particles
in finally equipped extrusion product. it is weaved by stainless
steel wire , black iron wire ,brass wire ,etc into wire mesh rolls
with width of 3ft -5ft , be put into slitting machine into shrot
width based on extruder screen disc's size,the second process is to
put into punching press machine through mold /dies into kinds of
shapes ( circular , oval , ring,etc ) , this is in single layer .
When we need multi layers screen , we put several layers on the
spot wedling machine through serveral nos of welding spots to fixed
the multilayers together , when we need multi layers in framed edge
, we need to wrap sheet along the mesh disc , normally we use the
edge material is aluminum or stainless steel . we will assure each
process in quality strict control and we will offer free sample
before final order to be approval on customer's end using .

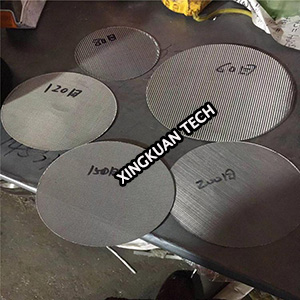

circular , single layer square ,3 layers, spot welding circular ,2
layers , framed edge
CUSTOMERIZED SHAPES DIFFERENT MESH MICRON
Material:
- Stainless Steel 304/316L ,
- black wire cloth,
- copper,
- brass Etc.
Packs Diameter :10mm-900mm( can be customerized for special)
Layer: 1,2,3,5 layers (single layer or spot welded multi-layer screen
discs.or with rim edges.)
Frame/Rim style: with and without frame and spot welding etc.
Frame/Rim Thickness:2 to 5 MM
Micron Rating:5 to 1000 micron
Edge Material:
- Aluminium,
- rubber,
- brass etc.
Shapes:
- circular,
- square,
- rectangle,
- kidney shape,
- Ring-shaped,
- Cylindrical,
- cones,
- bowl,
- disc,
- other special shapes.
Mesh Types:
- Fine Mesh.(100mesh,150,180,200,250,325mesh )
- Coarse Mesh(10,20,30,40,50,60,80mesh )
- Dutch weave mesh
Weave Types:
- Plain Weave.
- Dutch Weave.
- twill weave etc.
Parameters - [Plain weave style]
| Mesh | Wire Dia. mm | Aperture Size | Open Area % |
| 10 × 10 | 0.711 | 1.829 mm | 51.8 |
| 14 × 14 | 0.457 | 1.357 mm | 55.9 |
| 16 × 16 | 0.457 | 1.131 mm | 50.7 |
| 20 × 20 | 0.559 | 0.711 mm | 31.4 |
| 20 × 20 | 0.457 | 0.813 mm | 41 |
| 24 × 24 | 0.376 | 0.682 mm | 41.4 |
| 30 × 30 | 0.376 | 0.531 mm | 34.2 |
| 30 × 30 | 0.31 | 0.536 mm | 40 |
| 40 × 40 | 0.274 | 0.361 mm | 32.3 |
| 50 × 50 | 0.193 | 0.335 mm | 43.6 |
| 60 × 60 | 0.193 | 0.230 mm | 29.8 |
| 80 × 80 | 0.122 | 0.196 mm | 37.9 |
| 100 × 100 | 0.102 | 0.152 mm | 36 |
| 120 × 120 | 0.091 | 0.120 mm | 31.8 |
| 150 × 150 | 0.071 | 0.088 mm | 29.6 |
| 200 × 200 | 0.05 | 0.077 mm | 36.76 |
| 250 × 250 | 0.04 | 0.062 mm | 36.76 |
| 300 × 300 | 0.04 | 0.045mm | 27.83 |
| 325 × 325 | 0.035 | 0.043mm | 30.49 |
| 400 × 400 | 0.028 | 0.036mm | 31.25 |
| 500 × 500 | 0.025 | 0.026mm | 25.79 |
Parameters -[Twill weave style ]
| Mesh | Wire Diameter(mm) | Mesh Aperture(mm) | Material(AISI) |
| 250 × 250 | 0.04 | 0.063 | SUS316 |
| 300 × 300 | 0.04 | 0.044 |
| 325 × 325 | 0.035 | 0.043 | SUS316L |
| 350 × 350 | 0.03 | 0.042 |
| 400 × 400 | 0.03 | 0.033 |
| 450 × 450 | 0.028 | 0.028 |
| 500 × 500 | 0.025 | 0.026 |
Parameters -[Dutch weave style]
| Weaving Type | Mesh counting | Absolute micron rating | Nominal micron rating |
| Plain Dutch | 12X64 | 270-290 | 200 |
| Plain Dutch | 14X88 | 220-240 | 150 |
| Plain Dutch | 16X80 | 225-235 | 140 |
| Plain Dutch | 24X110 | 115-125 | 80 |
| Plain Dutch | 30X150 | 110-112 | 63 |
| Plain Dutch | 40X200 | 70-75 | 55 |
| Plain Dutch | 50X250 | 58-63 | 40 |
| Plain Dutch | 80X400 | 40-45 | 35 |
| Twill Dutch | 30X250 | 110-120 | 53 |
| Twill Dutch | 80X700 | 35-40 | 25 |
| Twill Dutch | 120X400 | 50-55 | 40 |
| Twill Dutch | 165X800 | 25-28 | 15 |
| Twill Dutch | 200X600 | 30 | 20 |
| Twill Dutch | 165X1400 | 16-20 | 10 |
| Twill Dutch | 200X1400 | 12-14 | 5 |
Applications :
Mainly used for filtration of plastics and rubber processing
industry, chemical and pharmaceutical industry. Some examples are:
- Reclamation of Plastic Waste
The extruder screen filter removes contaminants such as paper,
allowing the clean recycled plastic to be collected
at the end of the process
Extruded Profiles
Wire mesh extruder screen filters are extensively used in the
extrusion of plastic profiles. Applications include UPVC window
profiles, plastic tubing ranging from gutters to industrial utility
pipes and custom made extrusions.
Blown Film Extrusion
Extruder screen filters are used in the production of polythene
bags, waste sacks and plain ‘cling’ film to name but a few. The
wire mesh extrusion filters are an essential part of this process
as they remove any remaining impurities in the plastic so that the
end product does not have any flaws in it.
Other industries :
- Polyester Oriental Yarn.
- Polyester Stable Fibers.
- Polypropylene Yarn.
- Nylon and Acrylic Yarn.
- BCF Polypropylene Yarn.
- Polypropylene Spun bonded Non-woven Fabrics.
- Polyester fiber production.
- chemical and pharmaceutical industry.
- Oil and fuel filtration.
- Extrusion in lamination plants.
- Extrusion in Multilayer film plants
Pls offer descriptions or sample or drawings before we offer a best
quotation for you
Material -
shape -
Size -
Mesh -
Quantity -
And other special request !
