    Multilayers Mesh Pleated Packs , Extended Area Screens For Extrusion Machine

    Ask Lasest Price
    Brand Name : Xingkuan Tech
    Model Number : Multilayers mesh Pleated Packs, extended area screens for extrusion machine
    Certification : Bv,ce,sgs,Iso
    Price : Negotiate
    Payment Terms : L/C, T/T.etc
    Supply Ability : 30000pcs/day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Multilayers Mesh Pleated Packs , Extended Area Screens For Extrusion Machine

    Multilayers mesh Pleated Packs, extended area screens for extrusion machine
    Descriptions :

    Pleated packs, also known as extended area screens, are manufactured with multiple layers of lightweight compacted wire cloth, woven to precision, that assists in avoiding clogs and possible damages that unwanted particles present. Material type, pleat spacing, and pleat height are carefully determined during a consultation process, as is the viscosity, flow rate, pressure drop, and desired pack life. Pleated packs provide greater surface area than flat screen packs, as well as the ability to filter finer contaminates without compromising filter life.Non-woven felts and wire cloths can be pleated to increase the filtration area and pack life.

    Quick details & specifications :

    Mesh material : stainless steel wire cloth or black wire cloth /plain steel wire cloth

    Frame material : stainless steel ,aluminum , iron , brass , copper coated ,etc

    Main Features:

    • Large dirt holding capacity.
    • can be reused and is easy to clean.
    • Good resistance to high temperature and corrosion.

    Type : pleated in one side , or both 2 side are in pleated

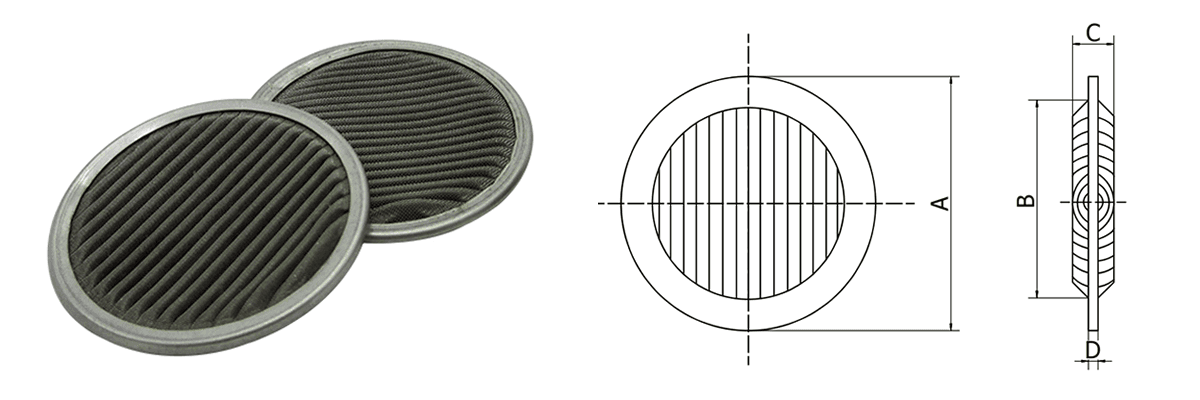

    DimensionsEffective Area in2
    A ± .005"B ± .015"C ± .015"D ± .015"
    137530010001522
    250042015002066
    36254901700301.00
    47506151700301.60
    51.0008751700303.30
    61.3751.2501700306.60
    Note:
    A – O.D. (Outer Diameter)
    B – I.D. (Inner Diameter)
    C – Overall Thickness
    D – Boarder Thickness

    Filter Micron
    Micron codeNominalAbsolute
    2X210
    2215
    5520
    101025
    202040
    404075
    7575100
    100100150
    200200300
    Micron rating is based on retention of particles whose two smallest dimensions exceed the specified rating

    Notice

    Except the screen in circular ,we also can do it in square and candle filters in pleated .


    Applications :

    • Filter high polymer melts such as chemical fiber, molten glass, ceramics, etc.
    • petrochemical, metallurgy, medicine industries
    • Air compressor energy -saving mesh netting

    Featured with large filter area and good hardness, pleated extruder screen can give long services for extruder and filter industries. Even in high temperature or high pressure, it also can ensure materials purity.We specialize in all types of extruder screens, hard to find mesh, and extra heavy wire cloth, no order is too small or too big. What is important to you is important to us- we're here to serve you! We are your partner in assuring you have the filtration products you need for your extrusion application.​
