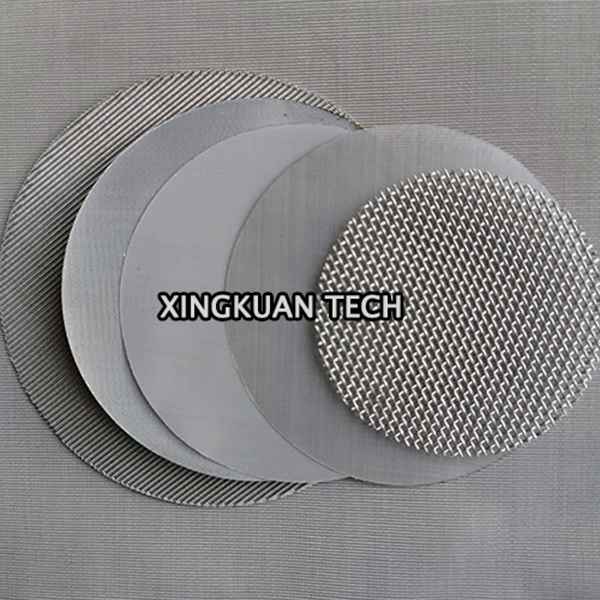

stainless steel extruder screen mesh filter foreign particles from
melt plastic
Descriptions :
stainless steel Extruder screen is nothing but a ss filter screen
disc, punched out of stainless steel wire mesh roll through presss
machine , spot welding machine , wrap rim machine or pleating
machine to combinate the final items on request to place on the
extrusion machine’s breaker plate to filter the contaminations and
other foreign particles from the melted plastic. Extruder screens
are made in a specific shape (i.e., Circular, Oval, Rectangular,
and Kidney), using single or multi layered wire mesh screens.The
use of stainless steel materials is due to their effectiveness
against the molten plastic’s pressure and temperature. Moreover,
due to the high tensile strength of the stainless steel, the
screens can be cleaned and used multiple times till the aperture
size is disturbed.
Quick details & specifications :
Material: stainless steel woven wire mesh cloth ( 304, 316, 316L,etc)
Weaving Style: plain weave, twill weave, dutch weave,etc
Layer: single layer, multi-layers.
Shape: circle, square, oval, rectangular, kidney, cones and other special
shape ,etc
Mesh : sqaure from 10 mesh - 650 mesh, and dutch weave upto 1800mesh
Disc shapes: round (diameter 5 - 900 mm), ring (inner diameter 18 - 250 mm,
outer diameter 50 - 350 mm), rectangular (length 60 mm - 400 mm,
width 50 mm - 100 mm), or customerized
Disc edge : Stainless steel, aluminum and copper is common ( others are on
request )
Parameters - [Plain weave style]
| Mesh | Wire Dia. mm | Aperture Size | Open Area % |
| 10 × 10 | 0.711 | 1.829 mm | 51.8 |
| 14 × 14 | 0.457 | 1.357 mm | 55.9 |
| 16 × 16 | 0.457 | 1.131 mm | 50.7 |
| 20 × 20 | 0.559 | 0.711 mm | 31.4 |
| 20 × 20 | 0.457 | 0.813 mm | 41 |
| 24 × 24 | 0.376 | 0.682 mm | 41.4 |
| 30 × 30 | 0.376 | 0.531 mm | 34.2 |
| 30 × 30 | 0.31 | 0.536 mm | 40 |
| 40 × 40 | 0.274 | 0.361 mm | 32.3 |
| 50 × 50 | 0.193 | 0.335 mm | 43.6 |
| 60 × 60 | 0.193 | 0.230 mm | 29.8 |
| 80 × 80 | 0.122 | 0.196 mm | 37.9 |
| 100 × 100 | 0.102 | 0.152 mm | 36 |
| 120 × 120 | 0.091 | 0.120 mm | 31.8 |
| 150 × 150 | 0.071 | 0.088 mm | 29.6 |
| 200 × 200 | 0.05 | 0.077 mm | 36.76 |
| 250 × 250 | 0.04 | 0.062 mm | 36.76 |
| 300 × 300 | 0.04 | 0.045mm | 27.83 |
| 325 × 325 | 0.035 | 0.043mm | 30.49 |
| 400 × 400 | 0.028 | 0.036mm | 31.25 |
| 500 × 500 | 0.025 | 0.026mm | 25.79 |
Parameters -[Twill weave style ]
| Mesh | Wire Diameter(mm) | Mesh Aperture(mm) | Material(AISI) |
| 250 × 250 | 0.04 | 0.063 | SUS316 |
| 300 × 300 | 0.04 | 0.044 |
| 325 × 325 | 0.035 | 0.043 | SUS316L |
| 350 × 350 | 0.03 | 0.042 |
| 400 × 400 | 0.03 | 0.033 |
| 450 × 450 | 0.028 | 0.028 |
| 500 × 500 | 0.025 | 0.026 |
Parameters -[Dutch weave style]
| Weaving Type | Mesh counting | Absolute micron rating | Nominal micron rating |
| Plain Dutch | 12X64 | 270-290 | 200 |
| Plain Dutch | 14X88 | 220-240 | 150 |
| Plain Dutch | 16X80 | 225-235 | 140 |
| Plain Dutch | 24X110 | 115-125 | 80 |
| Plain Dutch | 30X150 | 110-112 | 63 |
| Plain Dutch | 40X200 | 70-75 | 55 |
| Plain Dutch | 50X250 | 58-63 | 40 |
| Plain Dutch | 80X400 | 40-45 | 35 |
| Twill Dutch | 30X250 | 110-120 | 53 |
| Twill Dutch | 80X700 | 35-40 | 25 |
| Twill Dutch | 120X400 | 50-55 | 40 |
| Twill Dutch | 165X800 | 25-28 | 15 |
| Twill Dutch | 200X600 | 30 | 20 |
| Twill Dutch | 165X1400 | 16-20 | 10 |
| Twill Dutch | 200X1400 | 12-14 | 5 |
Applications :
- The screens are placed on the extrusion machine’s breaker plate to
filter the contaminations and other foreign particles from the
melted plastic.
- to manufacturing Masterbatches, Polypropylene yarn, PP Spun bond
fabrics, Plastic Granules, and Non-woven fabrics, PVC Compounds,
Blown Films, etc
Popular size in extrusion machine using : examples
• 10-12 micron screen pack for a 1" extruder.
• 20 mesh circle screens plain steel 16", 12", 8",6", 5.188", 1.5"
5 1/8" , 20 and 40 mesh melt screen for a 4 1/2" extruder.
• Screen mesh, 120 x 120 mesh with 2 layer for in house pelletizer.
• 0.50-0.625 dia. s.s. screen with and w/o frame for air to
circulate. 4 1/2" diameter circle, 20 mesh, .016" plain steel,
extruder screen.
• Extruder screens made from C276 Hastelloy or Monel 400 with a
diameter of 12/16" in a mesh of 20, 40, 60, 80, 100, 200.
• Dutch weave screen of mesh size: Mesh 24 x 110 d:0,35/0,25mm Ø170
mm Ø202 mm Ø305 mm; 20x60x100 size.
• 6 15/16" diameter 40 mesh screens from 304 ss.
• Gneuss style kidney shape stainless steel food grade mesh screen
disc.
• Stainless steel multilayer extruder screens diameter 68 x 132 mm.
• 1.5 cm diameter stainless steel 60 x 60 mesh for plastic
extrusion.
• Round extruder screens in 40 mesh and stainless steel, for a
polymer dewater press application.
• Stainless steel SUS304 wire mesh filter, Circle shape:
OD 58mm: Mesh 20, 40, 60.
OD 68mm: Mesh 20, 40, 60, 80.
OD 170mm: Mesh 14, 80.
OD 200mm: Mesh 20, 80.
OD 240mm: Mesh 20, 80.
Pls offer descriptions or sample or drawings before we offer a best
quotation for you
Material -
shape -
Size -
Mesh -
Quantity -
And other special request !
