    Anti Clog Mine Screen Mesh For Primary Sieving Of Mine And Aggregates

    Ask Lasest Price
    Brand Name : Xingkuan Tech
    Model Number : Mine & quarry screen mesh
    Certification : Bv ,sgs , ce , Iso
    Price : Negotiate
    Payment Terms : L, L/C, T/T
    Supply Ability : 10000m2/ week
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Anti Clog Mine Screen Mesh For Primary Sieving Of Mine And Aggregates

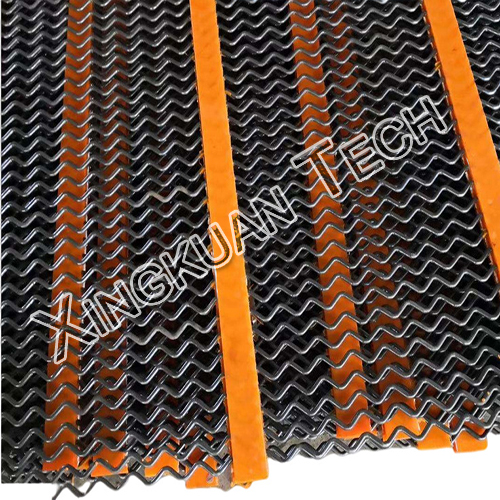

    Anti-Clog Quarry Screen Mesh for primary sieving of mine and aggregates


    Quick details & specifications :

    • Material ; High Carbon Wire, Manganese Steel Wire, Stainless Steel Wire
    • Wire diameter : 1.2-8mm
    • Aperture :2.2-40mm
    • Hole Shape: rectangular , diamond ,triangular and wave .
    • Edge:Flat Panel, Hook Type,band sheet wraped edge
    • Features :

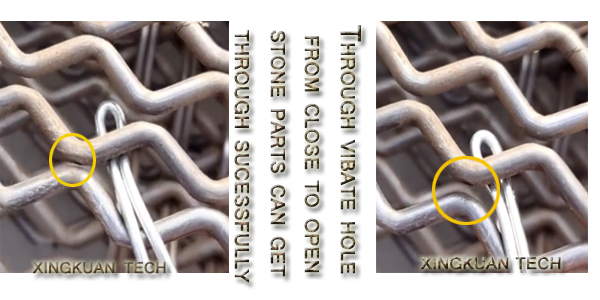

      • Anti blocking, save time of cleaning and unclogging the mesh
      • Maximizes screening efficiency ,30% higher than that of fixed mesh screen
      • More opening area
      • Wear resistance, high temperature resistance, high toughness, earthquake resistance, tensile resistance, no interference, and the screen permeability is better than that of square hole mesh
    • Below is only parts of standard specifications , if you need customerized , welcome you !
    Aperture (mm)Wire Diameter(mm)kg/m2Screening area%
    1.501.20-1.604.7-6.831-38
    2.001.20-1.604.3-6.237-43
    3.001.20-2.003.6-7.840-52
    4.001.20-2.003.1-6.945-58
    5.001.50-2.802.7-1141-65
    6.001.50-2.803.4-948-64
    8.002.00-3.154.5-9.153-63
    10.002.00-3.153.7-8.059-69
    14.002.00-4.003.0-9.661-76
    19.002.80-4.004.2-7.968-76
    22.002.50-4.003.0-7.172-80
    25.004.00-5.006.4-9.370-74
    26.004.00-5.006.10-9.2070-75
    28.003.00-4.003.5-5.877-82
    30.003.00-4.003.3-5.678-83
    32.004.005.3079
    35.004.00-5.004.8-7.377-81
    40.004.004.0084

    Descriptions :


    Mine& Quarry screen mesh is also called crusher screen mesh ,vibrating screen mesh and quarry mesh . It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. Screens with heavy duty coarse mesh are mostly used in quarries,which are designed to reduce the operating cost by effectively filtering, segregating and separating sand, gravel and quarry particles in a relatively short period of time.The wroking principle is through vibration of adjacent screen wire in random vibration to establish effective vibration difference.It has different hole shape or combinations for different usage.



    Applications :

    1. Mining industry.
    2. Quarry.
    3. Aggregate processing industry.
    4. Chemical industry.
    5. Sand and gravel industry.
    6. applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building

    Notice :

    1. Small size of sample is free
    2. Packing : waterproof paper + wooden case
    3. Delivery time : ready -stock for standard mesh szie .
    4. Payment term: TT,L/C or insurance order online .

    Please tell us

    • Material
    • Roll size or sheet or shape size
    • Mesh size
    • Quantity
    • Or the more information you have as you request
