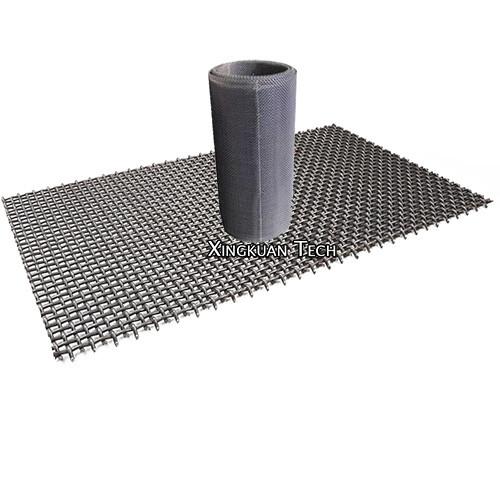

High carbon steel wire woven screen 65 Mn steel stone crusher screen

Quick detail :

• Material : Manganese steel 65Mn
• Wire diameter : 0.5mm-12.5mm
• Opening Size :0.45mm-100mm
• width : 0.914m(3ft),1m,1.22m(4ft),1.5m(5ft), 2m(6ft), etc
• Length : 2m in sheet (considering easy load by forklift) ,5.8m in sheet at largest (considering container size ) ,100m in roll
• Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
• Hole shape: Square, rectangular slot, long slot.
• Surface treatment: Anti rust oil painted or color painted as request
• Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
• Hook type: C or U hook for 30° - 180
• Packing shape : in sheet or roll by iron strip , iron pallet or bulk .
• Aperture error: ≤3%,which is better than International Standards; Wire diameter error: ±3%; Diagonal error: ≤9mm every 2m;

Below is only part of specifications , as per request is also available .

Descriptions :

65 Mn steel stone crusher screen is the woven crimped metal wire mesh (mining screen wire mesh, square vibrating metal wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles with different aperture. Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.

Applications :

• Cement industry;

• Stone crushers;

• Coal feeders;

• Machinery belt guards

• Component trays

• Gabbro Aggregate,gravel, granite,coal,rock Choose different material vibrating screen mesh

Feature :

The manganese steel is very abrasive and anti-corrosive.

1. Wearable resistance, high frequency and longer life.Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel
2. High abrasion and chemical corrosion resistance , excellent vibration and impact resistance
3. Large carrying capability,Large screening area
4. Weaving technology is pre-crimp by two wire, it is very tight constructure , not easy to loose .
5. Require less maintenance, easy to install
6. Lower cost ,High temperature-proof,draw-proof and shake-proof

Notice :

Packing : Each specification on one plywood pallet , iron pallet or rolls , surface treatment is processed with anti-rust paint or as your request
