crusher screen 65Mn vibrating screen mesh stone quarry sieve mesh

Quick detail :

• Material : Manganese steel
• Wire diameter : 0.5mm-12.5mm
• Opening Size :0.45mm-100mm
• width : 0.914m(3ft),1m,1.22m(4ft),1.5m(5ft), 2m(6ft), etc
• Length : 2m in sheet (considering easy load by forklift) ,5.8m in sheet at largest (considering container size ) ,100m in roll
• Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

1. Double crimped is also called plain weave. It is woven directly by straight wire, evenly crimped in warp and weft, providing a rigid construction.
2. Single intermediate crimped is the weaving method, which the weft wire is crimped before weaving and the warp wire is woven directly.
3. Double intermediate crimped is the weaving method, which both the warp and weft wire is crimped before weaving.
4. Lock crimped mesh is a method, which can lock the wire at their own positions through pressed at each side of the raised wire.
5. Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable.

• Hole shape: Square, rectangular slot, long slot.
• Surface treatment: Anti rust oil painted or color painted as request
• Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
• Hook type: C or U hook for 30° - 180
• Packing shape : in sheet or roll by iron strip , iron pallet or bulk .
• Features :

1. Wear and abrasion resistant.
2. Heavy impact resistant.
3. High temperature resistant.
4. Shock and pull resistant.
5. High tensile strength and toughness.
6. Acid, alkali and corrosion resistant.
7. Long service life.

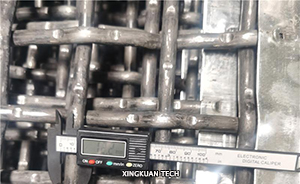

• Aperture error: ≤3%,which is better than International Standards; Wire diameter error: ±3%; Diagonal error: ≤9mm every 2m;

Below is only part of specifications , as per request is also available .

Descriptions :

65Mn Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance.

Applications :

• Cement industry;

• Stone crushers;

• Coal feeders;

• Machinery belt guards

• Component trays

• Gabbro Aggregate,gravel, granite,coal,rock Choose different material vibrating screen mesh

Notice :

1.When ordering screens the following technical aspects should be taken into account :

• Thick of wire : Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.
• Apreture or open area :This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life
• Mesh :The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.

2. Payment term : TT ,Lc or insurance online payment ,etc
