Manual Stone Crusher Mine Screen Mesh Trommel Grizzly Crimped

Ask Lasest Price
Brand Name :	Xingkuan Tech
Model Number :	Trommel screen,manual stone crusher screen,steel sieve ,grizzly crimped wire screen mesh
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L, L/C, T/T
Supply Ability :	10000m2/ week
Delivery Time :	7-15 working days

Add to Cart

Product Details
Company Profile

Manual Stone Crusher Mine Screen Mesh Trommel Grizzly Crimped

Trommel screen,manual stone crusher screen,steel sieve ,grizzly crimped wire screen mesh

Descriptions :

.Trommel screen mesh is installed on the trommel screen machines to separate aggregate materials according to size. Trommel screen mesh is particularly effective on lighter, wetter materials, like mulch, topsoil and compost.Crimped trommel screen mesh is made of high tensile carbon steel wire, spring steel wire and stainless steel wire. They have various wire diameters and hole sizes. Different hole type and edges can fit for almost all the trommel screen machines. Also, the crimped trommel screen mesh is the most popular and widely used type.

Quick detail :

Aperture : 0.5-150mm

Wire diameter : 0.6mm-12.8mm

Material : High carbon steel , stainless steel

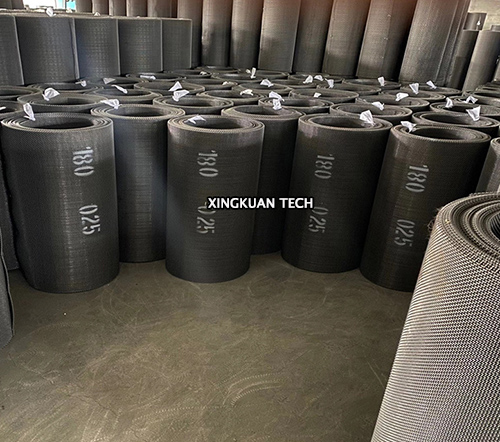

Type : sheet or roll .

Screen mesh Parameters :

Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡
Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡
3	2	10.16	12.5	4	12.32	26.99	5.72	12.7	75	11.2	18.48
3.15	1.4	5.47	12.5	5	18.14	26.99	6.3	15.14	75	12.5	22.68
3.15	2	9.86	12.7	3.05	7.5	28	5	9.62	76.2	9.53	24.22
3.18	1.22	4.3	12.7	3.76	10.91	28	6.3	14.7	76.2	9.53	13.45
3.18	1.37	5.24	12.7	4.11	12.76	28	8	22.58	76.2	12.7	23.04
3.18	1.83	8.49	12.7	4.5	14.95	28.58	5.72	12.11	80	10	14.11
3.18	2.03	10.05	12.7	4.88	17.2	28.58	6.3	14.45	80	12.5	21.45
3.18	2.34	12.6	12.7	5.26	19.56	28.58	7.94	21.92	80	12.5	37.8
3.18	2.67	15.48	13.2	3.15	7.71	30	4	5.98	85	11.2	16.56
3.35	2	9.5	13.2	4	11.81	30	5	9.07	90	12.5	19.36
3.75	2	8.83	13.2	5	17.45	30	6.3	13.89	100	11.2	14.33
3.75	2.5	12.7	14	2.5	4.81	30	7.1	17.26	100	12.5	17.64
3.97	3.05	16.83	14	4	11.29	30	8	21.39	101.6	12.7	17.92
4	2	8.47	14	5	16.71	30	10	31.75	125	12.5	14.43
4	2.5	12.21	14	5	16.71	30	10	31.75	150	12.5	12.21
4	3.15	17.62	14	6.3	24.83	31.5	5	8.7	150	12.5	22.68
4.35	2	8	14.29	4.11	11.66	31.5	6.3	13.34
4.5	2.5	11.34	14.29	4.88	15.78	31.5	7.1	16.59
4.5	2.8	13.64	14.29	5.26	17.97	31.5	8	20.58
4.5	3.15	16.47	14.29	5.72	20.77	31.5	8	20.58
4.75	2	7.53	15	5	15.88	31.5	10	30.6
4.75	2.8	13.19	15	6.3	23.66	31.5	11.2	37.31
4.75	3.15	15.95	15	8	35.34	31.5	12.5	45.1
4.76	2.03	7.71	15.88	4.11	10.73	31.5	12.5	45.1
4.76	2.34	9.79	15.88	4.88	14.57	31.75	6.3	13.25
4.76	2.67	12.19	15.88	5.26	16.62	31.75	7.19	16.86
4.76	3.05	15.13	15.88	5.72	19.24	31.75	7.94	20.17
4.76	3.43	18.24	15.88	6.3	22.73	31.75	9.53	27.94
5	1.6	4.93	16	4	10.16	31.75	10.01	30.47
5	2	7.26	16	5	15.12	31.75	11.11	36.57
5	2.5	10.58	16	5.6	18.44	34.93	4	5.22
5	2.8	12.77	16	6.3	22.6	34.93	6.3	12.23
5	3.15	15.46	16	8	33.87	34.93	7.94	18.68
5.3	2.5	10.18	16.5	2.5	4.18	34.93	11.11	34.05
5.3	3.15	14.91	17.46	3.05	5.76	35.5	8	18.69
5.56	2.67	11	17.46	3.76	8.46	35.5	10	27.91
5.56	3.05	13.72	17.46	4.88	13.54	35.5	12.5	41.34
5.6	2.8	11.85	17.46	6.3	21.21	35.5	12.5	41.34
5.6	3.15	14.4	18	4	9.24	37.5	7.1
6	2	6.35	18	5	13.8	37.5	8	17.86
6	2.5	9.34	18	6.3	20.74	38.1	7.19	14.5
6	3.15	13.77	18	8	31.26	38.1	7.94	17.39
6.3	2	6.12	19	2.8	4.57	38.1	9.53	24.22
6.3	2.5	9.02	19	5	13.23	38.1	9.53	24.22
6.3	3.15	13.34	19	5.6	16.19	38.1	10.01	26.45
6.3	4	19.73	19	6.3	19.92	38.1	11.11	31.86
6.35	2.34	8	19.05	3.05	5.35	38.1	12.7	40.32
6.35	2.67	10.04	19.05	4.88	12.64	38.1	12.7	40.32
6.35	3.05	12.57	19.05	5.26	14.45	40	4	4.62
6.35	3.43	15.28	19.05	5.72	16.78	40	8	16.93
6.35	4.11	20.51	19.05	6.3	19.88	40	8	16.93
6.47	2	6	19.05	6.3	19.88	40	10	25.4
6.7	3.15	12.79	19.05	7.94	29.66	40	10	25.4
6.87	1.6	3.84	20	5	12.7	40	12.5	37.8
7.1	2.5	8.27	20	6.3	19.17	40	12.5	37.8
7.1	2.8	10.06	20	6.3	19.17	41.28	11.11	29.92
7.1	3.15	12.29	20	8	29.03	42.5	7.1	12.91
7.1	4	18.31	20.6	2.8	4.26	42.5	8	16.1
7.5	3.15	11.83	20.6	6.3	18.74	44.45	7.19	12.71
7.94	3.43	13.14	21.2	6.3	18.33	44.45	9.53	21.37
7.94	3.76	15.35	21.2	6.3	18.33	45	6.3	9.83
7.94	4.11	17.8	21.2	7.1	22.62	45	8	15.34
7.94	4.88	23.59	21.7	6.3	18	45	10	23.09
8	2.5	7.56	22.23	4.88	11.16	45	10	23.09
8	3.15	11.3	22.23	5.26	12.78	45	12.5	34.51
8	4	16.93	22.23	5.72	14.87	45	12.5	34.51
8.5	4	16.26	22.23	6.3	17.67	47.5	8	14.65
9	2.5	6.9	22.23	6.3	17.67	50	8	14.01
9	3.15	10.37	22.23	7.19	22.32	50	10	21.17
9	4	15.63	22.23	7.94	26.54	50	10	21.17
9.5	2.5	6.61	22.25	3.15	4.96	50	12.5	31.75
9.5	2.8	8.09	22.4	5.6	14.22	50	12.5	31.75
9.5	3.15	9.96	22.4	6.3	17.56	50.8	7.94	13.63
9.5	4	15.05	22.4	6.3	17.56	50.8	9.53	19.12
9.53	3.43	11.53	22.4	7.1	21.7	50.8	9.53	19.12
9.53	3.76	13.51	22.4	8	26.74	50.8	9.53	33.03
9.53	4.11	15.73	22.4	8	26.74	50.8	10	20.89
9.53	4.88	20.99	22.4	10	39.2	50.8	12.7	32.26
9.53	6.3	31.84	23.6	5	11.1	53	8	13.32
9.7	3	9	23.6	6.3	16.86	53	10	20.16
10	3.15	9.58	23.81	5.26	12.09	56	8	12.7
10	4	14.51	23.81	5.72	14.07	56	10	19.24
10	5	21.17	23.81	7.94	25.22	56	11.2	23.71
10	6.3	30.92	25	3.15	4.48	56	12.5	28.97
10.2	2.5	6.25	25	3.15	4.48	57.15	10.01	18.95
10.7	2	4	25	4	7.01	60	8	11.95
10.6	4	13.92	25	6.3	16.1	60	10	18.14
10.6	6.3	29.83	25	6.3	16.1	60	11.2	22.37
11.11	4.5	16.48	25	8	24.63	63	10	17.4
11.11	4.88	18.91	25	8	24.63	63	11.2	21.47
11.2	2.8	7.11	25	10	36.29	63.5	7.94	11.21
11.2	3.15	8.78	25.4	3.05	4.15	63.5	12.7	26.88
11.2	4	13.37	25.4	5.26	11.46	65	8	11.13
11.2	5	19.6	25.4	5.72	13.35	65	10	16.93
11.8	2.5	5.55	25.4	6.3	15.9	65	12.5	25.6
11.8	3.15	8.43	25.4	7.94	24.01	67	12.5	24.96
11.8	4	12.86	25.4	9.53	33.02	71	8	10.29
11.8	5	18.9	25.4	10.01	35.94	71	10	15.68
11.8	6.3	27.85	26.5	6.3	15.37	71	11.2	19.38
12.5	3.15	8.05	26.5	8	23.56	75	10	14.94

Typical Applications :

Mining screen in quarry and sand
Vibrating screen for machine
Spare parts of crusher
Trommel screen mesh can be installed on the trommel screen machines to separate lighter and wetter materials in the chemical, coal, construction, plastic, metallurgy, mineral-selecting, agriculture, etc.

Notice :
In addition to our standard products, we can produce custom weave products in the widths, lengths, types, shapes, sizes, quantities and combinations you need based on your specifications or equipment limitations.

Opening sizes
Widths and lengths
Materials
Edge
Customized products
