6m Width High carbon steel mining screen mesh in crimped woven producing

Ask Lasest Price
Brand Name :	Xingkuan Tech
Model Number :	Lock crimp Woven wire screen for mining quarry aggregate sifting
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L, L/C, T/T
Supply Ability :	10000m2/ week
Delivery Time :	7-15 working days

Add to Cart

Product Details
Company Profile

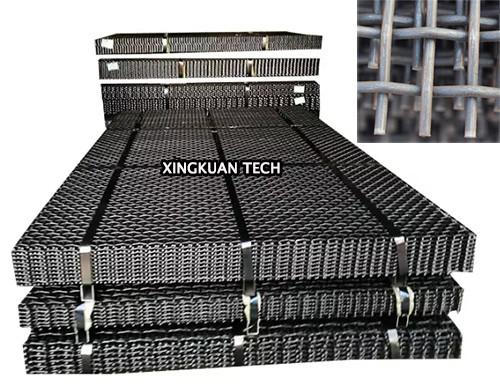

6m Width High carbon steel mining screen mesh in crimped woven producing

High carbon steel mining screen mesh in crimped woven producing

Descriptions :

Efficient screens need superior wear protection to meet the higher demands with regard to accuracy, clean air, efficient production and uptime. Our extensive range of screen panels and screening media solutions are manufactured from rubber, polyurethane, wedge wire, steel and composite materials. Xingkuan's commitment to lowering its clients' overall cost per ton processed through research and development, has resulted in screen panels that are modular, cost-effective and designed to lower maintenance and downtime while ensuring even feed distribution and high drainage capacities.Here we would like to lead you to lear about high carbon steel mining screen mesh as vibrating and sifting media .

Quick detail :

Aperture : 0.5-150mm

Wire diameter : 0.6mm-12.8mm

Material : High carbon steel , stainless steel

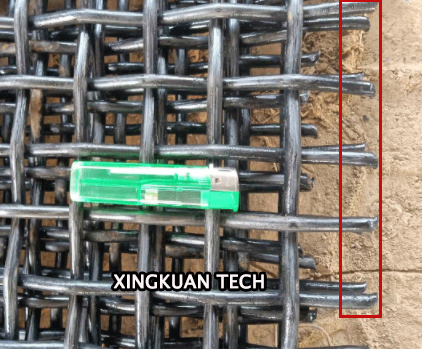

Edge :flat sheet (plain edge or without hook ) ,

bare hook (bent hook ),

band hook ( wrap plate along side )

Screen mesh Parameters :

Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡
Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡	Opening (mm)	Wire Size (mm)	Weight kg/㎡
3	2	10.16	12.5	4	12.32	26.99	5.72	12.7	75	11.2	18.48
3.15	1.4	5.47	12.5	5	18.14	26.99	6.3	15.14	75	12.5	22.68
3.15	2	9.86	12.7	3.05	7.5	28	5	9.62	76.2	9.53	24.22
3.18	1.22	4.3	12.7	3.76	10.91	28	6.3	14.7	76.2	9.53	13.45
3.18	1.37	5.24	12.7	4.11	12.76	28	8	22.58	76.2	12.7	23.04
3.18	1.83	8.49	12.7	4.5	14.95	28.58	5.72	12.11	80	10	14.11
3.18	2.03	10.05	12.7	4.88	17.2	28.58	6.3	14.45	80	12.5	21.45
3.18	2.34	12.6	12.7	5.26	19.56	28.58	7.94	21.92	80	12.5	37.8
3.18	2.67	15.48	13.2	3.15	7.71	30	4	5.98	85	11.2	16.56
3.35	2	9.5	13.2	4	11.81	30	5	9.07	90	12.5	19.36
3.75	2	8.83	13.2	5	17.45	30	6.3	13.89	100	11.2	14.33
3.75	2.5	12.7	14	2.5	4.81	30	7.1	17.26	100	12.5	17.64
3.97	3.05	16.83	14	4	11.29	30	8	21.39	101.6	12.7	17.92
4	2	8.47	14	5	16.71	30	10	31.75	125	12.5	14.43
4	2.5	12.21	14	5	16.71	30	10	31.75	150	12.5	12.21
4	3.15	17.62	14	6.3	24.83	31.5	5	8.7	150	12.5	22.68
4.35	2	8	14.29	4.11	11.66	31.5	6.3	13.34
4.5	2.5	11.34	14.29	4.88	15.78	31.5	7.1	16.59
4.5	2.8	13.64	14.29	5.26	17.97	31.5	8	20.58
4.5	3.15	16.47	14.29	5.72	20.77	31.5	8	20.58
4.75	2	7.53	15	5	15.88	31.5	10	30.6
4.75	2.8	13.19	15	6.3	23.66	31.5	11.2	37.31
4.75	3.15	15.95	15	8	35.34	31.5	12.5	45.1
4.76	2.03	7.71	15.88	4.11	10.73	31.5	12.5	45.1
4.76	2.34	9.79	15.88	4.88	14.57	31.75	6.3	13.25
4.76	2.67	12.19	15.88	5.26	16.62	31.75	7.19	16.86
4.76	3.05	15.13	15.88	5.72	19.24	31.75	7.94	20.17
4.76	3.43	18.24	15.88	6.3	22.73	31.75	9.53	27.94
5	1.6	4.93	16	4	10.16	31.75	10.01	30.47
5	2	7.26	16	5	15.12	31.75	11.11	36.57
5	2.5	10.58	16	5.6	18.44	34.93	4	5.22
5	2.8	12.77	16	6.3	22.6	34.93	6.3	12.23
5	3.15	15.46	16	8	33.87	34.93	7.94	18.68
5.3	2.5	10.18	16.5	2.5	4.18	34.93	11.11	34.05
5.3	3.15	14.91	17.46	3.05	5.76	35.5	8	18.69
5.56	2.67	11	17.46	3.76	8.46	35.5	10	27.91
5.56	3.05	13.72	17.46	4.88	13.54	35.5	12.5	41.34
5.6	2.8	11.85	17.46	6.3	21.21	35.5	12.5	41.34
5.6	3.15	14.4	18	4	9.24	37.5	7.1
6	2	6.35	18	5	13.8	37.5	8	17.86
6	2.5	9.34	18	6.3	20.74	38.1	7.19	14.5
6	3.15	13.77	18	8	31.26	38.1	7.94	17.39
6.3	2	6.12	19	2.8	4.57	38.1	9.53	24.22
6.3	2.5	9.02	19	5	13.23	38.1	9.53	24.22
6.3	3.15	13.34	19	5.6	16.19	38.1	10.01	26.45
6.3	4	19.73	19	6.3	19.92	38.1	11.11	31.86
6.35	2.34	8	19.05	3.05	5.35	38.1	12.7	40.32
6.35	2.67	10.04	19.05	4.88	12.64	38.1	12.7	40.32
6.35	3.05	12.57	19.05	5.26	14.45	40	4	4.62
6.35	3.43	15.28	19.05	5.72	16.78	40	8	16.93
6.35	4.11	20.51	19.05	6.3	19.88	40	8	16.93
6.47	2	6	19.05	6.3	19.88	40	10	25.4
6.7	3.15	12.79	19.05	7.94	29.66	40	10	25.4
6.87	1.6	3.84	20	5	12.7	40	12.5	37.8
7.1	2.5	8.27	20	6.3	19.17	40	12.5	37.8
7.1	2.8	10.06	20	6.3	19.17	41.28	11.11	29.92
7.1	3.15	12.29	20	8	29.03	42.5	7.1	12.91
7.1	4	18.31	20.6	2.8	4.26	42.5	8	16.1
7.5	3.15	11.83	20.6	6.3	18.74	44.45	7.19	12.71
7.94	3.43	13.14	21.2	6.3	18.33	44.45	9.53	21.37
7.94	3.76	15.35	21.2	6.3	18.33	45	6.3	9.83
7.94	4.11	17.8	21.2	7.1	22.62	45	8	15.34
7.94	4.88	23.59	21.7	6.3	18	45	10	23.09
8	2.5	7.56	22.23	4.88	11.16	45	10	23.09
8	3.15	11.3	22.23	5.26	12.78	45	12.5	34.51
8	4	16.93	22.23	5.72	14.87	45	12.5	34.51
8.5	4	16.26	22.23	6.3	17.67	47.5	8	14.65
9	2.5	6.9	22.23	6.3	17.67	50	8	14.01
9	3.15	10.37	22.23	7.19	22.32	50	10	21.17
9	4	15.63	22.23	7.94	26.54	50	10	21.17
9.5	2.5	6.61	22.25	3.15	4.96	50	12.5	31.75
9.5	2.8	8.09	22.4	5.6	14.22	50	12.5	31.75
9.5	3.15	9.96	22.4	6.3	17.56	50.8	7.94	13.63
9.5	4	15.05	22.4	6.3	17.56	50.8	9.53	19.12
9.53	3.43	11.53	22.4	7.1	21.7	50.8	9.53	19.12
9.53	3.76	13.51	22.4	8	26.74	50.8	9.53	33.03
9.53	4.11	15.73	22.4	8	26.74	50.8	10	20.89
9.53	4.88	20.99	22.4	10	39.2	50.8	12.7	32.26
9.53	6.3	31.84	23.6	5	11.1	53	8	13.32
9.7	3	9	23.6	6.3	16.86	53	10	20.16
10	3.15	9.58	23.81	5.26	12.09	56	8	12.7
10	4	14.51	23.81	5.72	14.07	56	10	19.24
10	5	21.17	23.81	7.94	25.22	56	11.2	23.71
10	6.3	30.92	25	3.15	4.48	56	12.5	28.97
10.2	2.5	6.25	25	3.15	4.48	57.15	10.01	18.95
10.7	2	4	25	4	7.01	60	8	11.95
10.6	4	13.92	25	6.3	16.1	60	10	18.14
10.6	6.3	29.83	25	6.3	16.1	60	11.2	22.37
11.11	4.5	16.48	25	8	24.63	63	10	17.4
11.11	4.88	18.91	25	8	24.63	63	11.2	21.47
11.2	2.8	7.11	25	10	36.29	63.5	7.94	11.21
11.2	3.15	8.78	25.4	3.05	4.15	63.5	12.7	26.88
11.2	4	13.37	25.4	5.26	11.46	65	8	11.13
11.2	5	19.6	25.4	5.72	13.35	65	10	16.93
11.8	2.5	5.55	25.4	6.3	15.9	65	12.5	25.6
11.8	3.15	8.43	25.4	7.94	24.01	67	12.5	24.96
11.8	4	12.86	25.4	9.53	33.02	71	8	10.29
11.8	5	18.9	25.4	10.01	35.94	71	10	15.68
11.8	6.3	27.85	26.5	6.3	15.37	71	11.2	19.38
12.5	3.15	8.05	26.5	8	23.56	75	10	14.94

Typical Applications :

Mining screen in quarry and sand
Vibrating screen for machine
Spare parts of crusher

Notice :
In addition to our standard products, we can produce custom weave products in the widths, lengths, types, shapes, sizes, quantities and combinations you need based on your specifications or equipment limitations.

Opening sizes
Widths and lengths
Materials
Edge
Customized products
