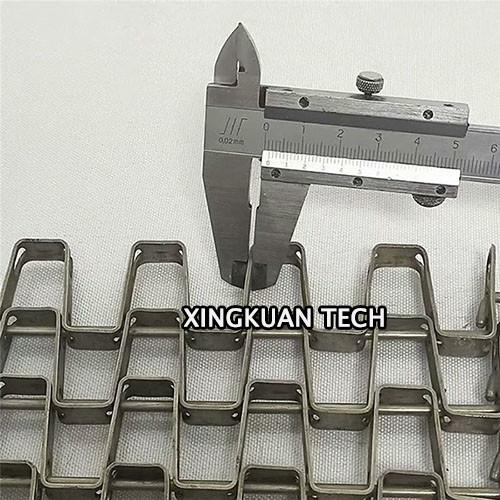

Carbon steel or stainless steel Honeycomb conveyor belts used on conveyor machine
Descriptions :

Honeycomb conveyor belt also called falt wire belt . It is the combination of flat sheet strips and round wire cross rod. The flat wires are arranged in the form of lattice and jointed with the straight round rods.is available in clinched or welded edge. These hinged steel conveyor belts are an assembly of automatically formed precision flat wire pickets. A continuous belt is made by nesting the pickets and inserting a straight round wire connector through the accurately positioned holes. The connector functions as a hinge, affording full vertical flexibility to the belt. Flat wire conveyor belts offer a flat conveying surface and a maximum open area for free air flow or water drainage. They are easy to clean and are extremely sanitary, especially when manufactured with xingkuan -recommended clinched edges. Clinched-edge treatment of these belts results in a number of additional user benefits which are fully outlined in the product technical bulletin.

​Quick Detail :

• Material : C-1045 High Carbon Steel, Galvanized Low Carbon Steel,201 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel
• Spiral Pitch : 12.7-40mm
• Rod pitch: 12.7,25.4,38.1,50.8mm ,etc
• Rod diameter : 3,4,5,6,8 mm, etc
• Belt width :200-4000mm
• Available clinched and welded selvage
• Available carbon and stainless steel
• Sprockets, flights, and special attachments available

WEDLED EDGE CLINCHED EDGE

Specifications :

Below is only part of specification , we can make the belt as per request .

Sprocket

In order to choose the most appropriate sprocket material for you application, please considering the conditions under which the belt will operate. Conditions such as temperature variations, erosion, abrasion.

Sprocket material include:Stainless steel, Cast iron, Nylon, Delrin.

Bore: Bores are typically circular, but square bores may be special ordered, size of the bore depends on the sprocket size and specification.
Keyway: Keyway size is provided according to clients demands. Quantity:0,1, or 2.

Applications :

• Conveyor machines
• Frying facilities
• Annealing furnaces
• Refrigeration facilities
• Cleaning machines
• Drying ovens
• Food transport
• Baking
• Cooling and freezing
• Steaming and drying

Features :

• Open mesh construction for quick drainage and free air circulation
• Flat carrying surface
• Easily cleaned
• Easily joined
• Economical
• High strength to weight ratio
• Positive sprocket drive

Notice :

1. Please send to us about your request with specificaions description or drawings
2. Payment term: TT,LC ,or any insurance order way through other platform
3. Delivery time : it is very fast if it is standard size .
4. Sprockets and other drive components can also be supplied as per request. Please contact us for more detailed specifications regarding our flat wire belts and corresponding sprockets.
