Flat flex belt ladder belt for conveyor food machine in enrobing production

Quick Detail :

• Material : Stainless steel 304 or 316 ,Carbon steel, othe material is as per special request .
• Wire diameter : 1,1.2,1.4,1.5,1.6,1.8,2.2,2.3mm.( 0.8mm-2.3mm)
• Pitch : 1/8",1/4",3/8",1/2",3/4"(3mm-20mm)
• Width : 76.2-4200mm
• Opening area: 67.5% to 86%
• Edge finish : single loop edge, double loop edge, C-shaped loop edge.
• Fight : single /double picket , bar ,tapered bar
• Length : As per request

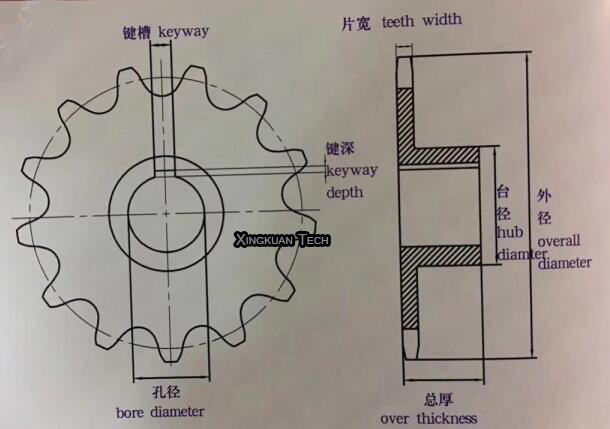

• Drive : by sprocket normally .keyway /keyway depth/bore diameter/overall diameter.

Descriptions :

Flat flex conveyor belt is one of the earliest conveyor belts used in the transportation industry, also known as chocolate belt or Z-shaped mesh belt. The structure is simple, which is made of single wires connected by bending. With a large proportion of openness holes, liquid and air can pass through the mesh easily, which is suitable for processing applications requiring enormous air and liquid through. Light belt weight, make its conveying efficiency much higher comparing with the other conveyor belts, suitable for food processing industry - heating, cooling, frying, baking, drying, enrobing, packaging, chocolate coating, frozen food, canned food, seafood, etc., in other industries such as electronic equipments, chemical machineries, general conveying machineries and special conveying machineries and others.It can work with sprocket ,and we also cansupply sprocket for you.In addition, the opening area ratio of 86% enables greater air flow to increase the efficiency of cooling, heating, drainage and drying performance.

Applications :

• The belts have large an open area (67-85%open)and are frequently used in cooling, baking,draying heating,decorating,battering and packing machines for light products.especially forthe production of food: snacks fish pizzas vegetables breadpastry -meat candy(small) potatoes biscuits chocolate nuts and fruits
• accommodate coated products that need to be separated to avoid any sticking during the enrobing process. like chocolate .
• transport light industrial products like electronic parts .

Specifications :

Below is only part of specification , we can make the belt as per request .

Features :

• Sprockets positive drive ensures stable tracking
• Large opening area, good ventilation, air through and water through
• Small drive rolls diameter
• Easy to clean, more hygienicres :

Notice :

1. Drive: Flat Flex Belt drive by stainless steel or nylon sprocket
2. Please send to us about your request with specificaions description or drawings
3. Payment term: TT,LC ,or any insurance order way through other platform
4. Delivery time : it is very fast if it is standard size .
