Thermostable SS201 Refractory Hex Mesh Hex Metal Refractory Hex Steel

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	Thermostable SS201 refractory Hex mesh/Hex metal refractory Hex steel
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	1000M2/day
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Thermostable SS201 Refractory Hex Mesh Hex Metal Refractory Hex Steel

Thermostable SS201 refractory Hex mesh/Hex metal refractory Hex steel
Descriptions :

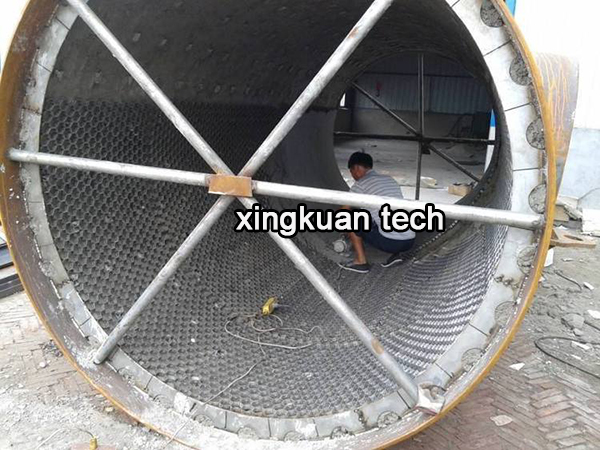

Stainless steel hex mesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of its strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
Quick details :

Parameter Tables
Material	Q235,Q345,304SS,310S,1Cr18Ni9Ti,0Cr13
Thickness	1.0mm/1.2mm/1.5mm/1.8mm/2.0mm/2.5mm/3.0mm
Height	10mm,15mm,19mm,25mm,30mm,40mm,50mm,60mm
Aperture	40mm,45mm,50mm,60mm,70mm,80mm,100mm
Panel size	standard size:0.96m*3.0m(according to the raw material size)

Anchorage Material		Chemical Composition								Service temprature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Service temprature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL	VARIOUS									550℃

Applicaions :
Stainless steel hex mesh is flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Features :

High wear resistance high temperature corrosion resistance.
Strong Thermal state impact ability.
Good mechanical processing performance.
Used in about 1300 °C.
High weldability long lifetime easy to install.

Notice :

Small sample in stock is free
Packing : pallet or as per request
Pls send us : thickness , hole type , hole size , deepth , length , width , quantity and other special request
If drawings you are at hand , it will be more helpful to communicate for your real request .
Professional team do professional work together .
We will give you suggestion after commnunication .
