Lance Type Metal Hexagon Mesh for Refractory Lining Carbon steel Q235 0Cr13 Material

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	Lance Type Flex Metal, Flexmetal with Lances, Flex Metal for Refractory Lining
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	1000M2/day
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Lance Type Metal Hexagon Mesh for Refractory Lining Carbon steel Q235 0Cr13 Material

Lance Type Flex Metal, Flexmetal with Lances, Flex Metal for Refractory Lining
Descriptions :

Flex metal refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, cyclone diplegs, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities

Refractory lining situations that have attendant high live loads occur in plant such as Rotary Kilns, where deep roof and side wall lining of dense refractories require maximum support during operating conditions or heavy weight pre-cast blocks are retained by bolt through, weld on and slip on systems.

Common Specifications:

Material	A3/Q235,SS304,310S,1Cr18Ni9Ti,0Cr13,Q345…
Gauge	1.0mm / 1.2mm / 1.5mm / 1.8mm /2.0mm / 2.5mm / 3.0mm
Thickness	10mm~70mm
Aperture	40-100mm
Panel size	0.96mx1.05m(according to the raw material size)
Note	Customers/other requirement is available for us

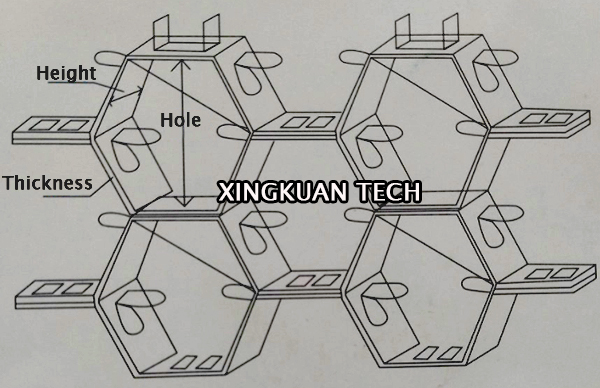

Thickness	Hole size	Height	Weight
mm	mm	mm	Kg/M2
1	50X50	10	3.3
1.2	45X45	10	4.5
1	50X50	15	5.2
1.5	50X50	15	7
1.5	60X60	15	6.2
1.75	50X50	20	11.5
2	50X50	20	13
2	50X50	25	17

Applicaions :

Process plant which is subject to the passage of erosive gas streams, especially at high temperature,benefit by cladding with Hexmetal infilled with erosion resistant refractories. Typical applicationsinclude Cyclones, Flue Gas Lines, Reactor Vessels, Windboxes, Fan Casings, Burner Quarls: in fact any vessel or section that is subject to erosion or abrasion

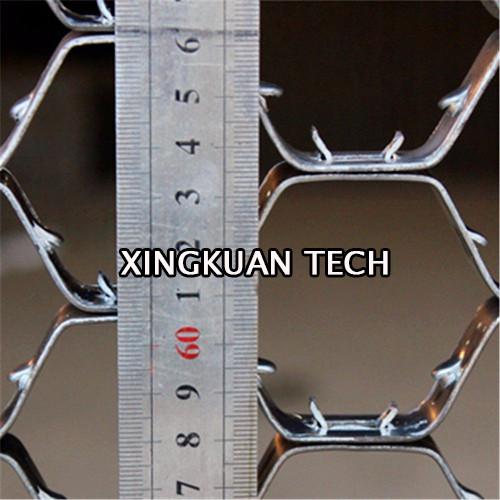

Photo Gallery :

Customized :we can design as your needs. many of mainframe factories cooperate with us to produce metal parts; We has already supplied kinds of liner metal fabric parts for many petrifaction equipment making enterprise. Our products can be used for petrol chemical; It is favorable to catalyst equipment as one of liner structures
