Stainless steel hex mesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of its strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

Common Specifications:

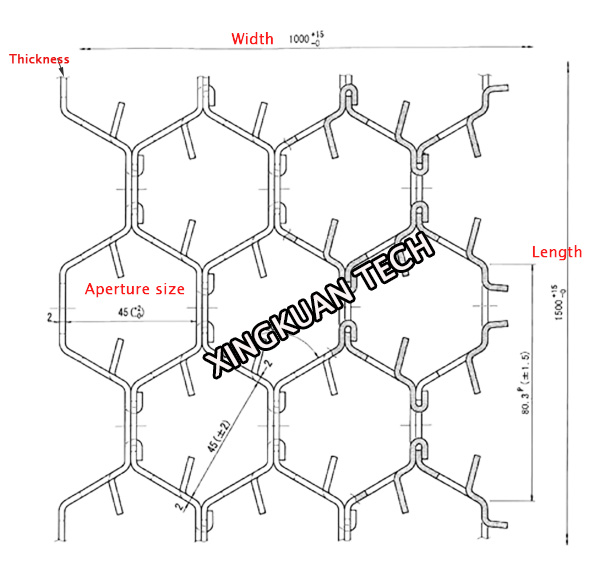

Customized is always available , below is parts of Hex mesh specifications :

1. XKH-H08 ASTM/A240 316L Hexmesh
Material:ASTM/A240 316L
Gauge:14G
Thickness:3/4 "
Aperture:2.0 "
Panel size:0.98mx1.02m(according tothe raw material size)

2.XKH-H07 304H High Corrosion Resistance Hexmesh
Material:ASTM/A240 304H
Gauge:14G
Thickness :20/25mm
Aperture:2.0 "
Panel size:0.96mx3.0m(according to the raw material size)

3.XKH-Heavy hexsteel metal
Material:310S
Gauge:14G +/-0.1mm
Thickness :50mm/60mm
Aperture :1-1/5"
Panel size :0.96mx1.02m(according to the raw material size)
Packaging:wooden pallet or high-quality steel pallet
Connection type :Within the buckle locking and riveting
Features:Riveting compact; operating temperature is 1150-1250°C

4.XKH-H02 Q345B Hexsteel
Material :SAE1020
Gauge :11G
Thickness :20mm
Aperture :2.0 "
Panel size:1.25mx3.00m(according to the raw material size)
Packing:High-quality steel pallet
Connection type :Outside buckle and riveted
Features:Resistant to wear, High strength, Antirust coating surface treatment

5.XKH-H04 Waste heat power generation special Hexmesh
Material :1Cr13
Gauge :1.5mm
Thickness :10mm
Aperture :45mm
Panel size :1mx1 m(according to the raw material size)

6.XKH-H03 High Abrasion Proof Hexsteel
Material :Q345B
Gauge :14G
Thickness :1-1/5"
Aperture :2.0 "
Panel size :0.98mx1.02m(according to the raw material size)
Packing:high-quality steel pallet
Connection type :Outside buckle and riveted
Features:Resistant to wear, High strength

Applicaions :

Widely used for large-scale petrochemical plant, especially for one of the main components of catalyst equipment,which can improve the wear resistance and lining strength.General site with steel (A3F) shells mesh, such as the reactor and secondary cyclone, U-tube regenerator flue, etc., high temperature alloy parts (1Cr13) shells mesh, such as the regenerator and a second Stage Cyclone and other places.
