Epoxy Coating Screening Support Layer Hydraulic Filters Net

Descriptions :

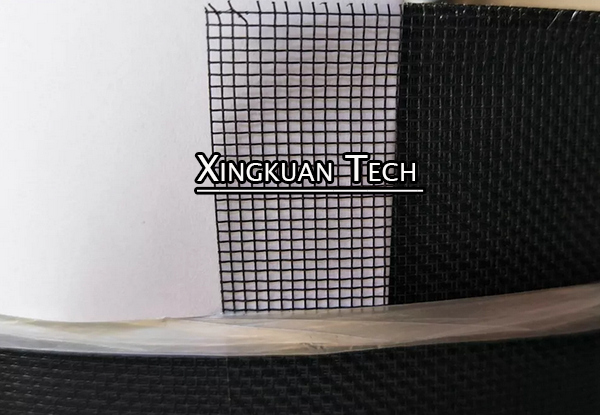

Epoxy coated wire mesh is mainly used in hydraulic or air filters as the supporting layers, it is the main part of the filters. It is formed by making the special epoxy powder adhering on surface of mesh woven with different type of wires through the electrostatic spraying process, then in the course of time and temperature, the epoxy powder melts and covers on the mesh surface to form the dense protecting layer.

Quick details & Specifications :

Epoxy coating characteristics :

After surface treatment, the interlacing points are fixed, the mesh holes are even and square, the warp and weft wires are vertical, the product is not easy to loosen and deform, and the supporting force is strengthened;

The mesh surface is soft, the mesh is easy to shape. Different colors of powder could coated. The color is even and consistent.

Advantages :

• 1. Oil immersion corrosion resistance, It can be tested at different temperatures and times by various brands of hydraulic oil media all over the world, and the coating surface is unchanged. It is suitable for special hydraulic filter products of high temperature and high pressure.
• 2. Weatherproof corrosion. According to the ASTM B117-09 salt spray test standard. It can be tested in continuous 96 hours in the salty environment, and the mesh surface is unchanged. It is suitable for the air filters used in the harsh environment and outdoor environment.Strong adhesion. It can pass the H grade pencil test, 1kg/50cm impact test, Scratch test, anti-fatigue test.
• 3. Excellent flexibility, folding the mesh on the bar with radius of curvature 1mm, no breaks on the surface.
• 4.After slitting and cutting, the edge wire doesn't fall off. The interlacing point cohesion can bear 0.7kg force.

Applications :

Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and low-carbon steel epoxy mesh, which are mainly used as the filter element support mesh of the filter, also known as hydraulic filter element protection mesh, hydraulic filter element metal mesh.

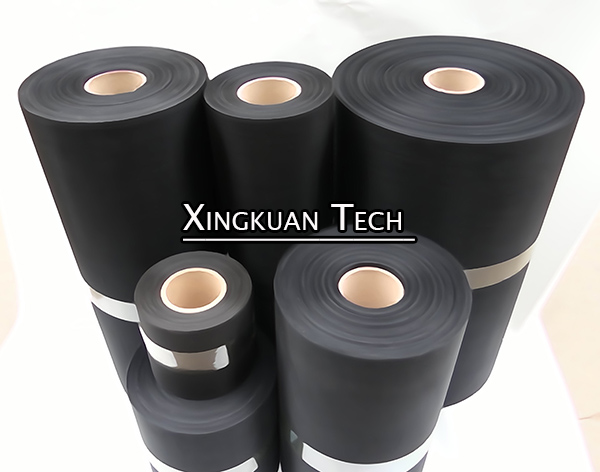

HOLE SIZE ,ROLL SIZE ,COLOR CHOICES ,ALL CUSTOMIZED REQUEST CAN BE SATISFIED
