Red Copper Wire Mesh Screen For RFI Shielding , Faraday Cages And Others

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	Brass ,Copper ,phosphor bronze shielding screen mesh
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	5000m2/ week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Red Copper Wire Mesh Screen For RFI Shielding , Faraday Cages And Others

Red copper wire mesh screen for RFI shielding, Faraday Cages and others

Quick details & specifications table :

Material:red copper (pure 99.99%)
Weaving Type : Plain ,Twill ,Dutch ,Crimped woven .
Mesh Count:Plain weave :6-200 mesh ,twill weave upto 250 mesh , dutch weaving is customerized as request
Wire Dimeter : 0.03-1.2mm
Width : 0.914,1,1.2,1.5,1.8,2,2.5 m (can be slitted into narrowest width can be 3mm)
Length :Ready stock is generally 30 meters long,cusomterized -up to 150 meters
Main features :

Pliable, malleable,
High thermal and electrical conductivity
Easily cut and bent
keep good strength
99.9%+ Pure copper wire mesh.

Below is only part of common specifiction, customerized is available .

Mesh	Wire Diameter			Opening (mm)
Mesh	SWG	mm	inch	Opening (mm)
6 mesh	22	0.711	0.028	3.522
8 mesh	23	0.610	0.024	2.565
10 mesh	25	0.508	0.020	2.032
12 mesh	26	0.457	0.018	1.660
14 mesh	27	0.417	0.016	1.397
16 mesh	29	0.345	0.014	1.243
18 mesh	30	0.315	0.012	1.096
20 mesh	30	0.315	0.0124	0.955
22 mesh	30	0.315	0.0124	0.840
24 mesh	30	0.315	0.0124	0.743
26 mesh	31	0.295	0.0116	0.682
28 mesh	31	0.295	0.0116	0.612
30 mesh	32	0.274	0.011	0.573
32 mesh	33	0.254	0.010	0.540
34 mesh	34	0.234	0.0092	0.513
36 mesh	34	0.234	0.0092	0.472
38 mesh	35	0.213	0.0084	0.455
40 mesh	36	0.193	0.0076	0.442
42 mesh	36	0.193	0.0076	0.412
44 mesh	37	0.173	0.0068	0.404
46 mesh	37	0.173	0.0068	0.379
48 mesh	37	0.173	0.0068	0.356
50 mesh	37	0.173	0.0068	0.335
60 × 50 mesh	36	0.193	0.0076	-
60 × 50 mesh	37	0.173	0.0068	-
60 mesh	37	0.173	0.0068	0.250
70 mesh	30	0.132	0.0052	0.231
80 mesh	40	0.122	0.0048	0.196
90 mesh	41	0.112	0.0044	0.170
100 mesh	42	0.012	0.004	0.152
120 × 108 mesh	43	0.091	0.0036	-
120 mesh	44	0.081	0.0032	0.131
140 mesh	46	0.061	0.0024	0.120
150 mesh	46	0.061	0.0024	0.108
160 mesh	46	0.061	0.0024	0.098
180 mesh	47	0.051	0.002	0.090
200 mesh	47	0.051	0.002	0.076

Descriptions :

Our copper mesh is 99+% commercially pure and is available in rolls and cut pieces.Copper wire mesh is made of silk threads woven by plain, twill or ruffled patterns. Depending on the requirements, we can manufacture copper wire cloth in different shapes or densities.

Alloy	Standard(s)	Limits (%)	Phosphorus (P)	Copper+Silver (Cu)+(Ag)
C12200 CDA 122 Copper	ASTM B152	Min	0.015	99.9
C12200 CDA 122 Copper	ASTM B152	Max	0.04	Balance

Applications :

Gutter and soffit screens
Insect screens
Root control
Cabinet screens
Sculpture
Papermaking
Filtrations
Lab test
RFI shielding,

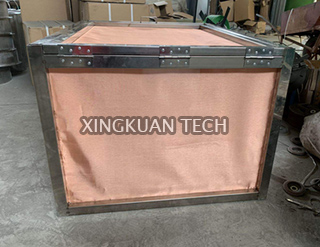

Faraday Cages
heavier industry :
Energy storage
Electric heaters
Pest control fumigation
Tactical military shelters and modular containers
Robotics and power automation
Gamma irradiators
Health, body and mind enrichment
Space program initiatives
Metalsmithing and bookbinding
Air and liquid filtration and separation

Notice :

Small size of sample is free

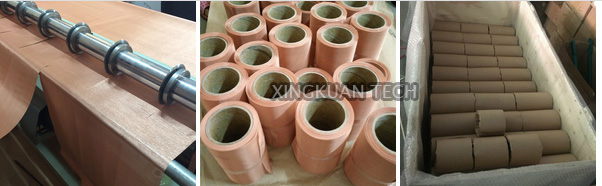

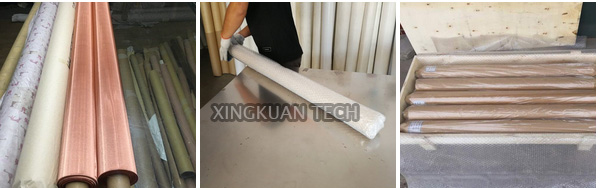

Packing : waterproof paper + wooden case
Delivery time : ready -stock for standard mesh szie .
Payment term: TT,L/C or insurance order online .
we can make roll into narrow width strip or any circle or any shape for special usage .

Any special request you have ,please send to us , try best to implement a solution for you .

Please tell us

Material
Roll size or sheet or shape size
Mesh size
Diameter
Quantity
Or the more information you have as you request
