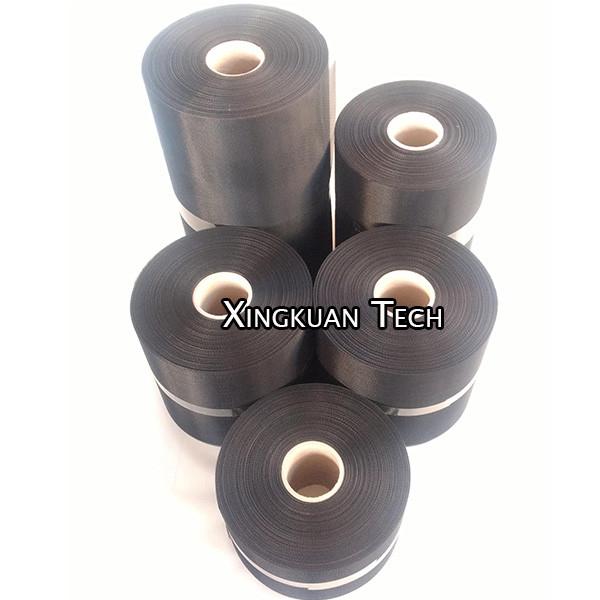

High quality epoxy coated wire mesh support or for pleat spacing in filters

Quick details :

• Material : Low carbon steel wire (annealed wire ) , Aluminum alloy wire (5154,5154A), Stainless teel wire + Epoxy powder
• Wire diameter : 0.16-0.30mm(Bwg 31 ,32 ,33 ,34 ) ,etc
• Mesh count : 14x14,16x16,18x16,18x18,18x14目,18x20,20x20,22x22,22x24,24x24,30x30, etc
• Weaving type : Plain weave (in square hole )
• Width :5cm -150cm (1.5m)
• Length : 30m,50m,100m,150m( 100feet -500feet )
• Color : Black , grey , etc
• Size : can be cstomerized , for width , we can cut it into fixed length through slitting machine .
• We offer high quality : mesh opening is uniform, the mesh surface is flat, and not easy to rust

Descriptions :

Industrial epoxy mesh (also called epoxy coated wire mesh,epoxy coated mesh,epoxy coated welded wire mesh,and epoxy coated welded wire mesh )Epoxy coated filter wire mesh is mainly composed of plain steel wires woven together and coated with quality epoxy resin powder through the electrostatic spraying process to make this material resistant to corrosion and acids.We offer a big quantity of epoxy coated wire mesh from stock.Available in rolls (big lengths also available) or cut in strips.After surface treatment, the interlacing points are fixed, the mesh holes are even and square, the warp and weft wires are vertical, the product is not easy to loosen and deform, and the supporting force is strengthened; The mesh surface is soft, the mesh is easy to be shaped. Different colors of powder can be coated. The color is even and consistent.

Applications :

• As a support or for pleat spacing in filters

• Hydraulic filter parts

• Air filters

• Oil filters

• window & door protection screen

Specifications :

Below is only part of common size , customerized is available .

Features :

• Epoxy resin powder spray --anti-corrosion

• Excellent flexibility: Folding the mesh on the bar with radius of curvature 1mm, no breaks on the surface.

• After slitting and cutting, the edge wire doesn't fall off. The interlacing point cohesion can bear 0.7kg force.

• It can be tested at different temperatures and times by various brands of hydraulic oil media all over the world, and the coating surface is unchanged.

• Strong adhesion

Notice :

1. Packing : Kraft paper , wooden case or pallet
2. Payment term: T/T,LC, or through 3rd platform by insurance order .
3. reminder : also used as window Screen, doors screens to resist the bug, mosquitoes.etc .
