TA1 TA2 Titanium Woven Wire Mesh Screen Black White Color For Corrosion Environment

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	Fecral wire mesh
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	5000m2/ week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

TA1 TA2 Titanium Woven Wire Mesh Screen Black White Color For Corrosion Environment

TA1 ,TA2 Black and white Titanium wire mesh woven type for corrosion environment

Quick details & specifications table :

Material:TA1,TA2 - pure titanium wire

Titanium Grade 1 (TA1, UNS R50250): Grade 1 is the most ductile and softest titanium with good corrosion resistance.
Titanium Grade 2 (TA2, UNS R50400): Grade 2 has moderate strength and also provides good corrosion resistance.
Type and surface color : both -99% pure titanium content, .
- White : without graphite coating.
- Black : with graphite coating

Weaving Type :Plain weave , Twilled Weave.
Mesh Count:4-400mesh (stock : from 5-200mesh in woven type )
Wire Dimeter :0.02-0.9mm
Width : 0.914,1,1.2,1.3,1.5m or customerized weaving
Length :Ready stock is generally 30 meters long
Delivery time : for standard size , within 2 workingdays to dispatch .
Common aliasez :
- titanium wire mesh,
- titanium wire cloth,
- titanium wire mesh screen,
- woven titanium mesh
Main features :
- Light weight , low density but high strength
- Excellent Corrosion Resistant
- Good cryogenic and high temperature resistance;
- Non-magnetic and non-toxic;
- Low elastic modulus;
- Good anti-damping performance.

Below is only part of common specifiction, customerized is available .
( same mesh can be in different wire diameter , it is adjustable )

Certifiction (Tiatanium )
Tiatanium		Chemical Composition
	UNS/ASTM	Ti	Fe	O	C	N	H
Ti 1	R50250	Balance	0.2%	0.18%	0.08%	0.03%	0.015% (max. values)
Ti 2	R50400	Balance	0.3%	0.25%	0.08%	0.03%	H 0.015% (max. values)

Certifiction (Tiatanium )
Tiatanium		Mechanical properties
	UNS/ASTM	Tensile Strength	Elongation	Melt
Ti 1	R50250	56 Kpsi	25%	3040° F
Ti 2	R50400	50 Kpsi	25%	3040° F

Woven type -Titanium wire mesh specification table
Mesh (wires/in.)	Wire Diameter (in.)	Width of Opening (in.)	Open Area (%)
4 × 4	0.0320	0.2180	76.00
4 × 4	0.0350	0.2150	74.00
6 × 6	0.0320	0.1350	65.60
7 × 7	0.0250	0.1180	68.20
8 × 8	0.0320	0.0930	55.40
9 × 9	0.0320	0.0790	50.60
10 × 10	0.0350	0.0650	42.30
10 × 10	0.0300	0.0700	49.00
10 × 10	0.0250	0.0750	56.30
12 × 12	0.0110	0.0723	75.30
14 × 14	0.0160	0.0550	60.20
16 × 16	0.0060	0.0565	81.70
18 × 18	0.0100	0.0460	67.40
18 × 18	0.0110	0.0445	64.40
18 × 18	0.0160	0.0400	50.8
20 × 20	0.0030	0.0470	88.40
20 × 20	0.0200	0.0300	36.00
20 × 20 TW	0.0160	0.0340	46.20
24 × 24	0.0100	0.0320	57.90
24 × 24	0.0118	0.0299	51.40
26 × 26	0.0100	0.0290	54.90
30 × 30	0.0100	0.0233	49.00
32 × 32	0.0100	0.0210	46.50
35 × 35	0.0080	0.0206	51.80
40 × 40	0.0050	0.0200	64.00
40 × 40	0.0100	0.0150	36.00
50 × 50	0.0080	0.0110	30.30
50 × 50 TW	0.0040	0.0160	64.00
60 × 60 TW	0.0090	0.0077	21.30
90 × 90	0.0040	0.0071	41.00
100 × 100	0.0020	0.0080	64.00
120 × 120 TW	0.0040	0.0043	27.00
150 × 150 TW	0.0027	0.0040	35.50

Descriptions :
Titanium wire mesh is weaved by 99% pure titanium wire . Black and white appearance is because of the surface treatment . White or black is the origional color . The titanium mesh manufacturing industry is one of the most important industries in the world. It is a global industry with a high demand for raw materials. Woven type is is mostly useful in automotive applications where it provides protection from noise and heat, as well as structural integrity. It also has a high strength-to-weight ratio due to its lightweight and high corrosion resistance. For Titanium Mateial , the mesh in expanded type and perforated type also very common and available producing .

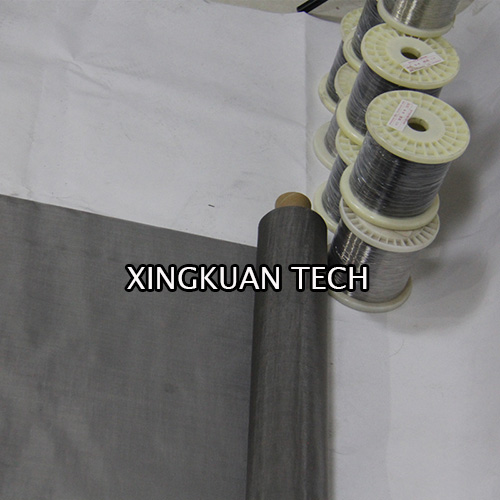

Brighten /White titanium woven mesh Black titanium woven mesh

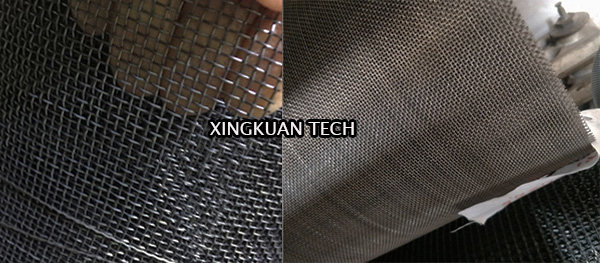

Black titanium woven mesh -10mesh Brighten /White titanium woven mesh -15mesh

White /Brighten titanium wire mesh -30mesh White /Brighten titanium wire mesh -50mesh

Applications :

Aerospace, Medical, Plating, Architectural, Medical, Marine, Chemical processing manufacturing, etc.
suitable for the manufacture of titanium electrode mesh, titanium anode mesh, various chemical liquid filtering mesh, seawater filtering titanium mesh.
In the corrosion environment, its surface will form an oxidation film layer to protect wire mesh from being corroded, and especially in sea water, wet chlorine, chlorite, organic salts, it shows a better corrosion resistance.
can be used for skull repair, electromagnetic shielding or speaker vibration film.
Black titanium wire mesh : suitable for industries with low purity of solution such as seawater filtration.
White (brighten) titanium wire mesh : suitable for manufacturing titanium electrode mesh and chemical titanium mesh

Notice :

Small size of sample is free
Packing : waterproof paper + wooden case
Delivery time : ready -stock for standard mesh szie .
Payment term: TT,L/C or insurance order online .
we can make roll into narrow width strip or any circle or any shape for special usage .

Please tell us

Material
Roll size or sheet or shape size
Mesh size
Quantity
Or the more information you have as you request
