Automobile filter lining mesh ,Annealing wire epoxy mesh , black
color

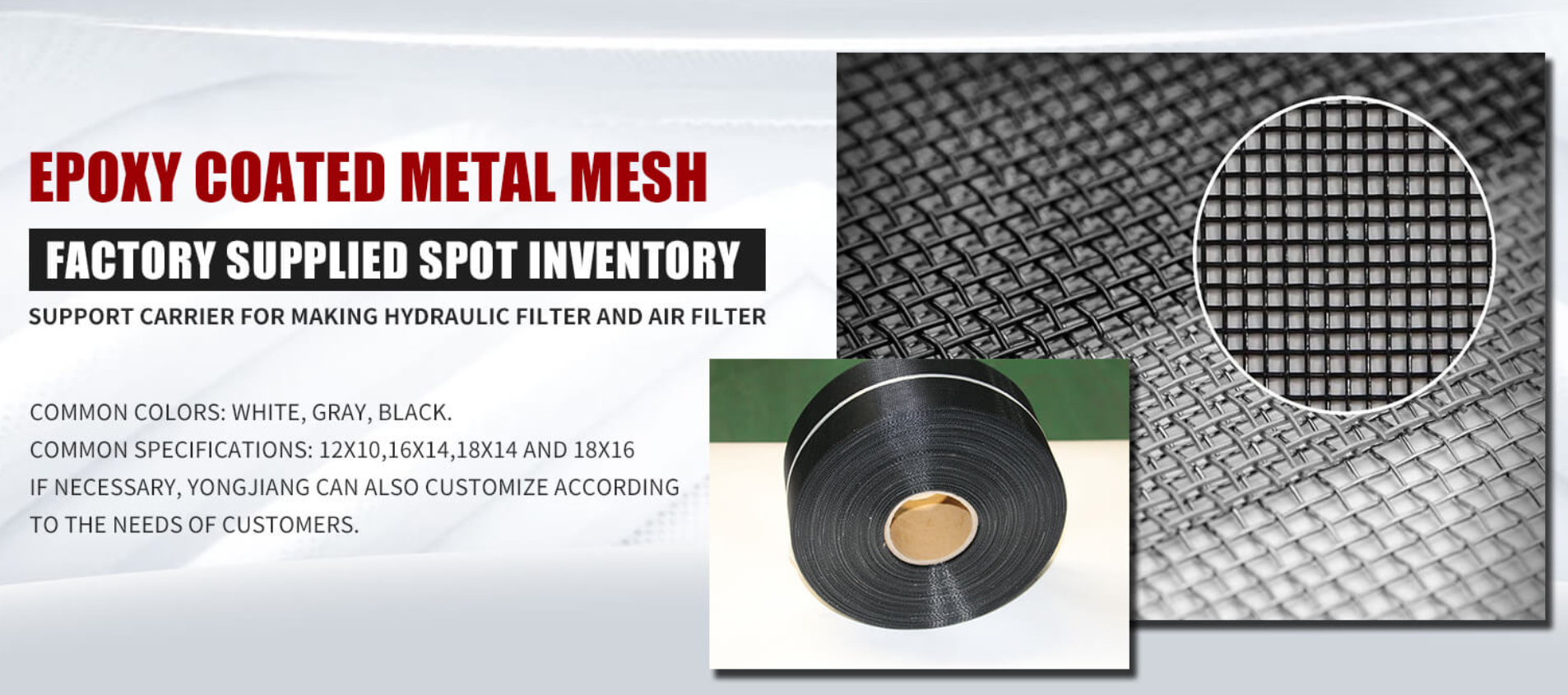

Epoxy coated filter wire mesh is mainly composed of plain steel
wires woven together and coated with quality epoxy resin powder
through the electrostatic spraying process to make this material
resistant to corrosion and acids. The epoxy-coated wire mesh is
usually used as a support layer for the filtering which replacing
galvanized wire mesh and is ideal due to the stability of the
structure as well as its affordability, it's the main part of
filters.
Specifications :
Material: CCL epoxy annealed 1006 alloy, Stainless steel, Aluminum
5052 etc.
Color: Black/charcoal epoxy
Mesh size:18x14mesh(hole size 1.4mmx1.8mm), 24x22mesh(hole size
0.8mmx1.0mm),28x24mesh(hole size 0.7mmx0.8mm)
Wire diameter: 0.008inch(0.20mm)
Width: customized
Length: customized
Characteristics
1. Even and square hole
2. Not easy to loosen and deform, the supporting force is
strengthened
3. Soft mesh surface and easy to be shaped.
4. Different colors of powder can be coated.
5. Even and consistent color.
Application
This product can be used for pleated filter element supports, which
can be used in hydraulic systems as well as in the automotive
industry, such as hydraulic filters, air filters, etc.
Any need for Epoxy coated mesh, welcome to contact XIGKUAN TECH
This mesh assures good results in pleating, saving the coating
stability. Usually used in oleodynamic and air filtering
applications.
We offer a big quantity of epoxy coated wire mesh from stock.
Available in rolls (big lengths also available) or cut in stripes.
