150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color

    Buy cheap 150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color from wholesalers

    Buy cheap 150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color from wholesalers
    • Buy cheap 150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color from wholesalers
    • Buy cheap 150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color from wholesalers
    • Buy cheap 150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color from wholesalers

    150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color

    Ask Lasest Price
    Brand Name : Hebei xingkuan
    Model Number : 0.23-0.32mm
    Certification : Bv ,sgs , ce , Iso
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 5000m2/ week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color

    150mesh red copper wire mesh ,aperture 0.09-0.10mm,Plain weave ,red color


    1.Descriptions :

    150 mesh plain weave red copper wire mesh including 150 wires and openings of 1 inch Using 0.06-0.07mm diameter wire, by plain weaving, woven 150 mesh opening for 0.09-0.10mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

    a.materials:

    it is available in three different wire materials

    • C11000 (99.9%) pure copper wire
    • C10200 (99.95%) pure copper wire
    • C10100 (99.99%) pure copper wire

    ​b. specifications :

    Meshwire DiaApertureopen area rateopen area
    mminchmminch%mm²
    1500.060.00230.1090.004341.680.0119
    1500.070.00270.0990.003934.410.0098

    c.Roll width:

    0.914m(3‘), 1.0m, 1.22m(4') ,etc

    d.Roll length:

    30m (100'),etc

    2.Applications :

    • Decorative grills
    • EMI shielding
    • RFI shielding
    • Test Sieves
    • Capillary wicking material of heat pipes

    3.Packing:

    copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

    outside wooden cases or wooden pallet.

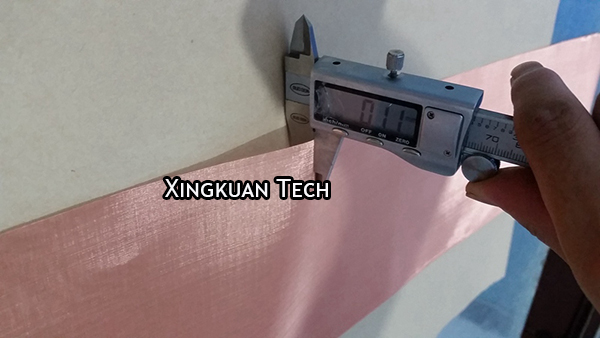

    4. Pictures :



    Quality 150mesh Copper Wire Mesh Aperture 0.09-0.10mm Plain Weave Red Color for sale
