100mesh Copper Wire Mesh Aperture 0.15 - 0.18mm Plain Weave Red Color

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	0.23-0.32mm
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	5000m2/ week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

100mesh Copper Wire Mesh Aperture 0.15 - 0.18mm Plain Weave Red Color

100mesh red copper wire mesh ,aperture 0.15-0.18mm,Plain weave ,red color

1.Descriptions :

100 mesh plain weave red copper wire mesh including 100 wires and openings of 1 inch Using 0.07-0.10mm diameter wire, by plain weaving, woven 100 mesh opening for 0.15-0.18mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

a.materials:

it is available in three different wire materials

C11000 (99.9%) pure copper wire
C10200 (99.95%) pure copper wire
C10100 (99.99%) pure copper wire

b. specifications :

Mesh	wire Dia		Aperture		open area rate	open area
Mesh	mm	inch	mm	inch	%	mm²
100	0.07	0.0027	0.184	0.0072	52.48	0.0339
100	0.08	0.0031	0.174	0.0068	46.92	0.0302
100	0.09	0.0035	0.164	0.0064	41.69	0.0269
100	0.10	0.0039	0.154	0.0060	36.75	0.0237

c.Roll width:

0.914m(3‘), 1.0m, 1.22m(4') ,etc

d.Roll length:

30m (100'),etc

2.Applications :

Decorative grills
EMI shielding
RFI shielding
Oil strainers
Test Sieves
Capillary wicking material of heat pipes

3.Packing:

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

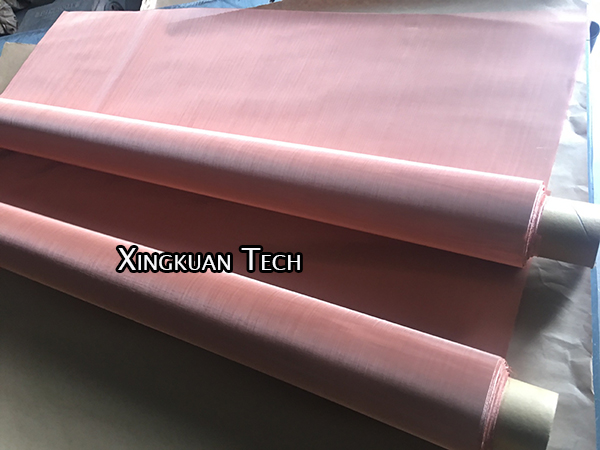

4. Pictures :
