30mesh Copper Woven Metal Wire Mesh Screen Aperture 0.57 - 0.72mm 99% Pure

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	30mesh copper woven metal wire mesh screen Aperture 0.57-0.72mm 99% pure
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	5000m2/ week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

30mesh Copper Woven Metal Wire Mesh Screen Aperture 0.57 - 0.72mm 99% Pure

30mesh copper woven metal wire mesh screen Aperture 0.57-0.72mm 99% pure

1.Descriptions :

24 mesh plain weave red copper wire mesh including 24 wires and openings of 1 inch Using 0.15-0.35mm diameter wire, by plain weaving, woven 24 mesh opening for 0.70-0.90mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

a.materials:

it is available in three different wire materials

C11000 (99.9%) pure copper wire
C10200 (99.95%) pure copper wire
C10100 (99.99%) pure copper wire

b. specifications :

Mesh	wire Dia		Aperture		open area rate	open area
Mesh	mm	inch	mm	inch	%	mm²
30	0.12	0.0047	0.726	0.0286	73.66	0.5280
30	0.13	0.0051	0.716	0.0282	71.67	0.5136
30	0.15	0.059	0.696	0.0274	67.70	0.4853
30	0.17	0.0066	0.676	0.0266	63.87	0.4578
30	0.19	0.0074	0.656	0.0258	60.15	0.4312
30	0.20	0.0078	0.646	0.0254	58.33	0.4181
30	0.27	0.0106	0.576	0.0227	46.39	0.3325

c.Roll width:

0.914m(3‘), 1.0m, 1.22m(4') ,etc

d.Roll length:

30m (100'),etc

2.Applications :

Decorative
Filters
Jewelry
shileding
DIY

3.Packing:

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

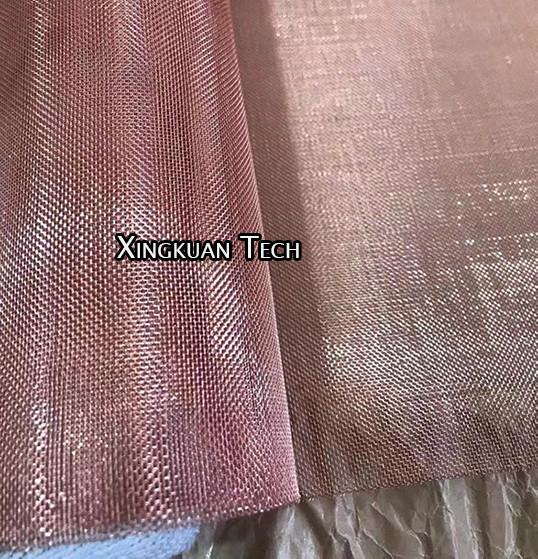

4. Pictures :
