12 Mesh 0.35mm,0.4mm 0.5mm 99.9% Pure Copper Wire Mesh Coarse Screen

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	Brass ,Copper ,phosphor bronze shielding screen mesh
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	5000m2/ week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

12 Mesh 0.35mm,0.4mm 0.5mm 99.9% Pure Copper Wire Mesh Coarse Screen

12Meshx0.35mm,0.4mm ,0.5mm,99.9% pure copper wire mesh Coarse Screen

1.Descriptions :

12 mesh plain weave red copper wire mesh including 12 wires and openings of 1 inch Using 0.35-0.50mm diameter wire, by plain weaving, woven 12 mesh opening for 1.6-1.7mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

a.materials:

it is available in three different wire materials

C11000 (99.9%) pure copper wire
C10200 (99.95%) pure copper wire
C10100 (99.99%) pure copper wire

b. specifications :

Mesh	wire Dia		Aperture		open area rate	open area
Mesh	mm	inch	mm	inch	%	mm²
12	0.35	0.0138	1.770	0.0700	69.66	3.1200
12	0.40	0.0157	1.716	0.0675	65.77	2.9469
12	0.50	0.0196	1.616	0.0636	58.33	2.6136
12	0.60	0.0236	1.5166	0.0597	51.34	2.300

c.Roll width:

0.914m(3‘), 1.0m, 1.22m(4') ,etc

d.Roll length:

30m (100'),etc

2.Applications :

Sifting powders
Oil strainers
Test sieves
Shielding

3.Packing:

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

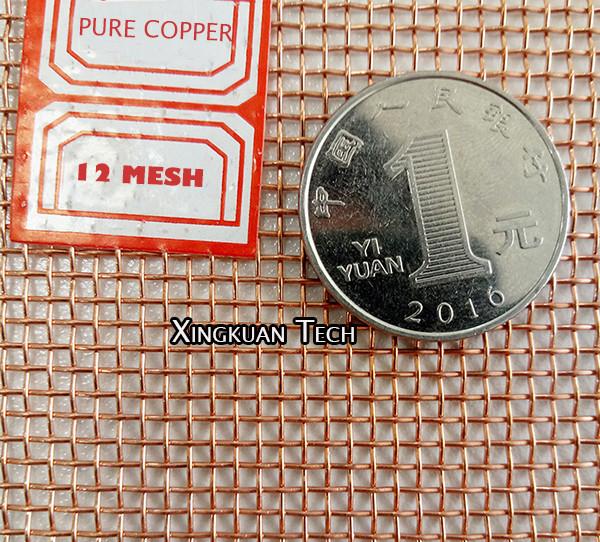

4. Pictures :
