99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen

Ask Lasest Price
Brand Name :	Hebei xingkuan
Model Number :	Brass ,Copper ,phosphor bronze shielding screen mesh
Certification :	Bv ,sgs , ce , Iso
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	5000m2/ week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

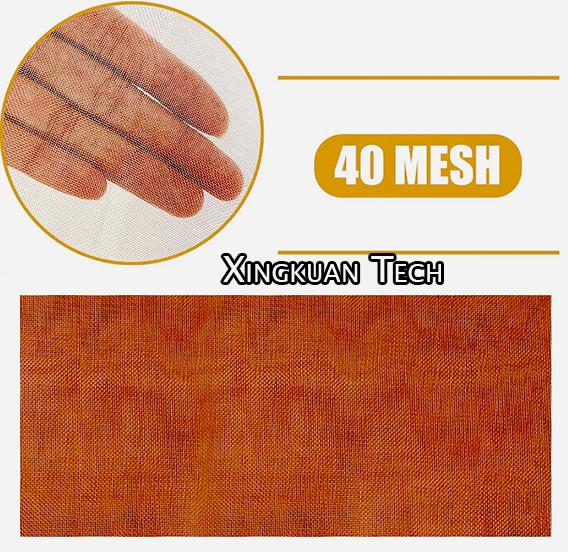

99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen

99.9% Pure Copper Wire mesh 40 Meshx0.12mm,0.18mm ,0.17mm,0.2mm Dense Screen

Copper mesh is a kind of soft, malleable and ductile metal mesh, and has high thermal and electrical conductivity. . With the features, the copper wire mesh are widely used in the filtration and separation industries

Mesh	wire Dia		Aperture		open area rate	open area
Mesh	mm	inch	mm	inch	%	mm²
40	0.12	0.0047	0.515	0.0202	65.77	0.2652
40	0.15	0.0059	0.485	0.0190	58.33	0.2352
40	0.18	0.0070	0.455	0.0179	51.34	0.2070
40	0.20	0.0078	0.435	0.0171	46.92	0.1892

Roll width: 0.914m(3‘), 1.0m, 1.22m(4')

Roll length: 30m (100')

Copper wire mesh materials

We maintains the largest selection of copper grades to support customer’s needs. Copper wire mesh is comprised of pure copper, it is available in three different wire materials

C11000 (99.9%) pure copper wire
C10200 (99.95%) pure copper wire
C10100 (99.99%) pure copper wire

Applications :

Sifting powders
Oil strainers
Test sieves
Shielding
Battery

40 mesh copper wire mesh packing

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

Notice :

Small size of sample is free
Delivery time : ready -stock for standard mesh szie .
Payment term: TT,L/C or insurance order online .
we can make roll into narrow width strip or any circle or any shape for special usage .

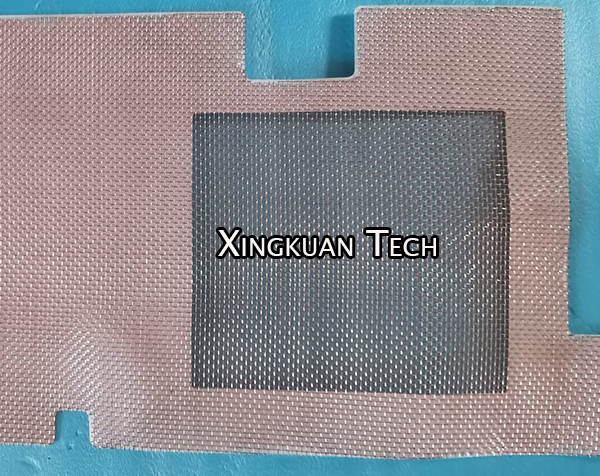

40 mesh copper wire mesh can be easily to be cut into any customized shape :
